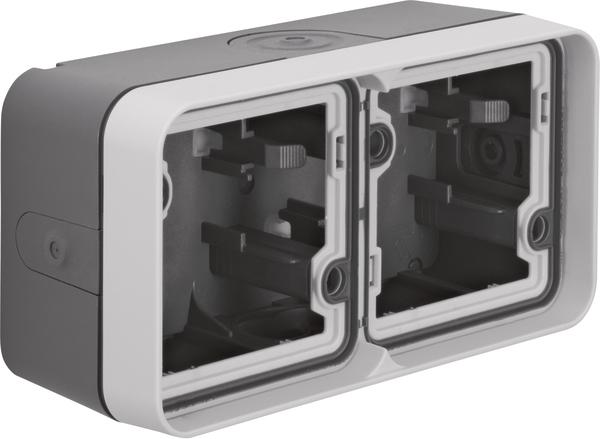

Berker APWG housing w.frame W.1 6719323515 2gang horizontal. 4 cable entries light grey

Berker Housing with Frame 6719323515

Manufacturer: Berker
Description: Housing with Frame
Cable Entry: lgr
Type: 6719323515
Configuration: Surface-mounted housing
Number of Units: 2
Mounting Direction: Horizontal
Material: Plastic
Material Quality: Thermoplastic
Halogen-free: Yes
Surface Protection: Untreated
Surface Finish: Matte
Color: Gray
RAL Number (similar): 7011
Transparent: No
With Cover Frame: Yes
With Channel Entry: Yes
With Cable Entry: Yes
With Screw Entry: No
Protection Class (IP): IP55
Device Width: 147 mm
Device Height: 76 mm
Device Depth: 56 mm

Additional Details: Housing base 2-fold horizontal with frame, 4 cable entries AP W.1 gray. Housing 2-fold horizontal, with frame AP. For horizontal mounting, with 4 cable entries, including one entry for 2 cables and one entry for cable or pipe. The lateral arrangement of the upper/lower cable entry makes it particularly suitable for mounting next to door frames or similar. The additional lateral cable entries are especially suitable for workbenches, for example. Full surface sealing under the housing base to seal the back of the housing, a Wago 2-wire connection terminal for wiring included, two snap-in places for Wago 2-wire connection terminals in the housing base. The protection degree IP55 is only achieved when mounted with a modular insert AP/UP from the W.1 product line.
