Berker AP housing

Berker Surface-Mounted Housing 2f. pws 10427009

Manufacturer: Berker
Description: Surface-mounted housing 2f. pws glossy
Type: 10427009
Composition: Surface-mounted housing
Suitable for installation over existing flush-mounted box: yes
Suitable for modular installation switch programs: no
Number of units: 2
Mounting direction: vertical
Table device: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With cover frame: no
With channel entry: yes
With cable entry: yes
With screw entry: no
With installation pipe entry: yes
Number of entries: 4
Protection class (IP): IP20
Width: 231 mm
Number of grounding terminals: 1
Height: 59 mm
Device width: 153 mm
Device height: 88.5 mm
Device depth: 41.5 mm

Berker Surface-Mounted Housing 2f. pws 10427009: further details

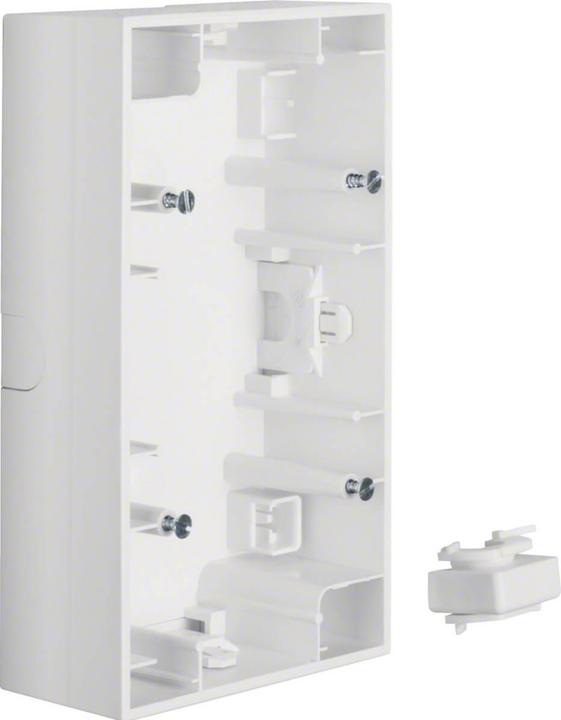

Surface-mounted housing 2-fold K.1 polar white, glossy. 2-fold surface-mounted frame for vertical installation, with cable and channel entry, entry possible from the top, bottom, and centrally on each side. Suitable for mounting on flammable surfaces, area program. With the surface-mounted frame, flush-mounted devices can be used for surface installation. Material: plastic, thermoplastic, impact-resistant, high-gloss surface, halogen-free. EAN: 4011334267478.
