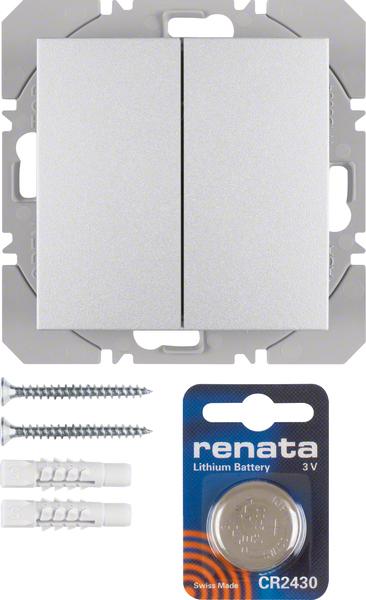

Berker 85656283

KNX Wireless Wall Switch 2-fold flat quicklink B.7 aluminum, matte. The KNX Wireless Wall Switch 2-fold flat quicklink is designed for remote control of assigned KNX wireless receivers. It allows for flat surface mounting and combination expansion with a 3V CR 2430 lithium button battery. Integration is achieved via the KNX wireless media coupler AP into the KNX-TP system. The tool-free quicklink configuration is done through buttons and an LED display. The upper and lower operating surfaces are freely configurable and can be set for single or dual surface operation. Additionally, the switch features a send status and battery status LED in red/green/orange, as well as a configuration LED and a reset function (to factory settings).

Quicklink functions: Switching, Dimming, Blinds, 2 Scenes, Timer, Momentary Switch, Memory.

Simple additional functions: +6 Scenes, On/Off mode, 1-button control Up/Down. ETS additional functions: +6 Scenes, On/Off mode, Push Button, Status Display, Dimming Value.
