Berker 85245224

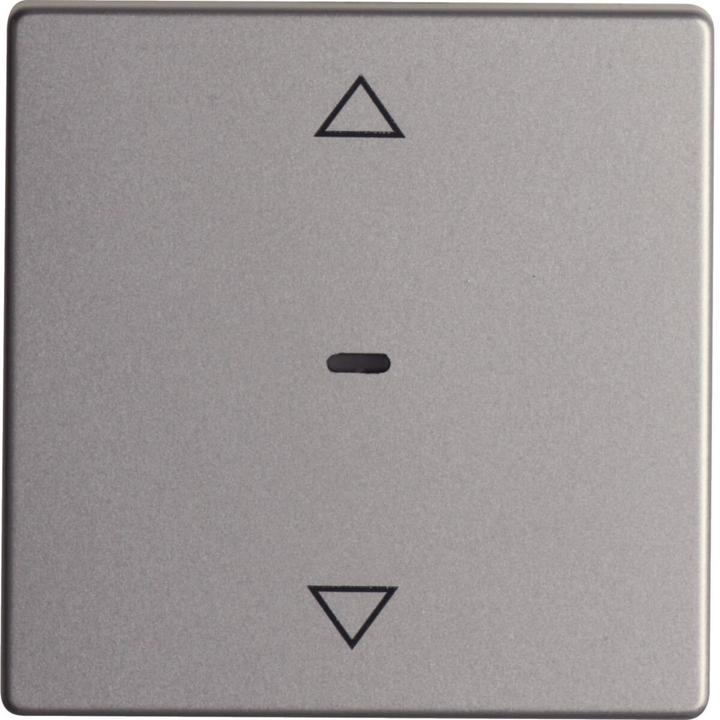

KNX Wireless Blind Button quicklink Q.x aluminum, painted. The KNX Wireless Blind Button quicklink is designed to be mounted on compatible inserts and features printed symbols for the arrows. It allows for manual operation as well as automated memory execution or remote control via KNX wireless. Integration is achieved through a KNX wireless media coupler into the KNX-TP system. The quicklink configuration is tool-free via buttons and an LED display, with a configuration and function button.

The button has a status LED for the memory and party function in red/orange, a configuration and function LED, and a control LED for the lockout feature. There is an LED display for insert compatibility.

Functions: Party function, no execution of automatic, wireless, and secondary commands (lockout feature), configurable send and/or receive behavior, memory function for the automatic execution of learned up and down times with position, reset function to factory settings. Through a sensor, sun protection and twilight-controlled lowering with a wireless brightness sensor are possible. The slat position can be saved for scenes and recalled via KNX wireless devices.

quicklink functions: Blind, 2 scenes, memory, forced control, up/down button.

easy additional functions: +6 scenes, 1 button control up/down.

ETS additional functions: +6 scenes, slat angle, position approach, status display, 2 x alarm.
