Berker 75163090

Berker Touch Sensor 3fold 75163090

Manufacturer: Berker
Description: Touch Sensor 3fold Glass Polar White
Type: 75163090
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: yes
With Bus Coupling: no
Number of Activation Points: 6
Number of Buttons: 3
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Glass
Material Quality: Other
Surface Protection: Painted
Surface Finish: Glossy
Color: White
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20

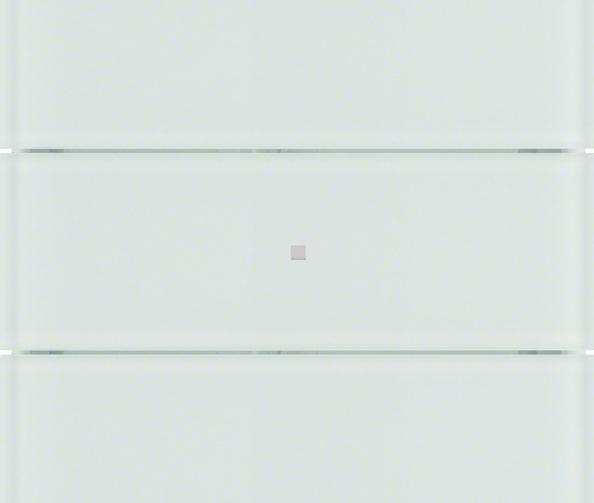

The 3fold B.IQ touch sensor made of glass in polar white is a standard B.IQ module with dismantling protection and a labeling field, equipped with one operational LED and six status LEDs. It is installed flush-mounted and is an instabus user module that is plugged onto a bus coupler. The dismantling protection is provided by the screw connection of the touch sensor to the bus coupler. Data exchange between the touch sensor and the bus coupler occurs via the user interface. Each button press on the touch sensor generates a telegram, the format of which depends on the parameterized application. Depending on the selected application, switching, momentary, dimming, blind, or value telegrams can be sent.
EAN: 4011334380863.
