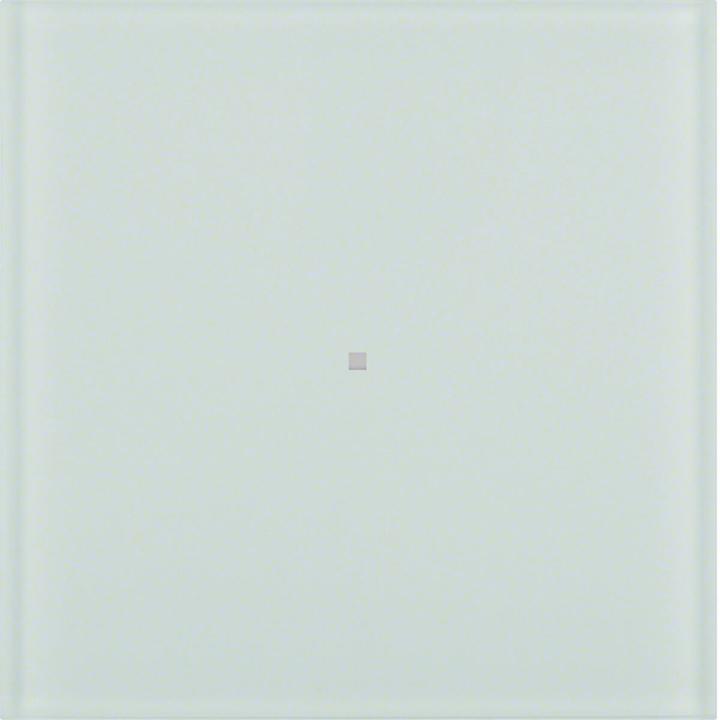

Berker 75161090

Berker Touch Sensor Single 75161090

Manufacturer: Berker
Description: Touch Sensor Single Glass Polar White
Type: 75161090
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: yes
With Bus Coupling: no
Number of Activation Points: 2
Number of Buttons: 1
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Glass
Material Quality: other
Surface Protection: lacquered
Surface Finish: glossy
Color: white
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20

The single touch sensor B.IQ made of glass in polar white is a standard B.IQ with dismantling protection and features an operating LED as well as two status LEDs. It is installed flush-mounted and serves as an instabus user module that is plugged onto a bus coupler. The dismantling protection is provided by screwing the touch sensor to the Up bus coupler. Data exchange between the touch sensor and the Up insert occurs via the user interface (AST). Each button press generates and sends a telegram. The telegram format depends on the parameterized application. Depending on the chosen application, switching, dimming, blind, or value telegrams can be sent.
