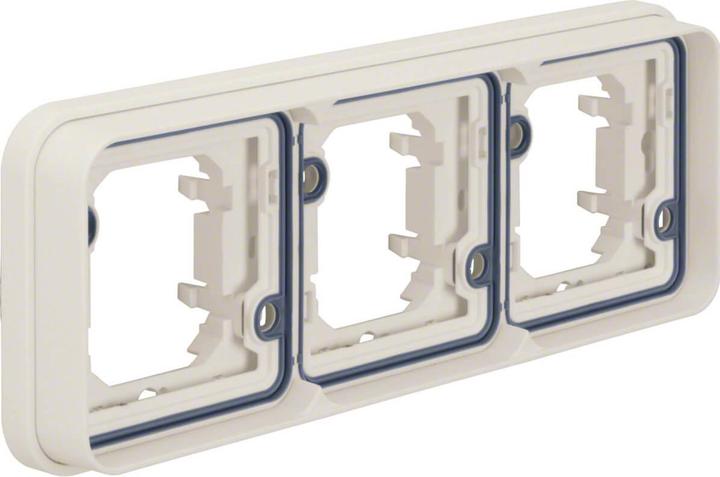

Berker 13303502

Berker Frame 3-fold 13303502

Manufacturer: Berker
Description: 3-fold horizontal frame in polar white
Type: 13303502
Number of units: 3
Mounting direction: horizontal
Number of horizontal units: 3
Number of vertical units: 1
Number of horizontal modules (in modular construction): 3
Number of vertical modules (in modular construction): 1
Number of switch inserts: 3
With mounting frame: no
Flush-mounted installation: yes
Suitable for flush-mounted conduit boxes: no
Suitable for device installation channels: yes
Suitable for built-in installation: yes
Text field/labeling area: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Impact resistance: IK05
Mounting type: screw mounting
Width: 80.5 mm
Height: 300 mm
Depth: 9.9 mm
Installation width: 71 mm
Installation height: 71 mm
Diameter of opening (hole): 0 mm

Berker Frame 3-fold 13303502: additional details
3-fold horizontal frame for flush mounting, with seal W.1 in matte polar white. 3-fold horizontal frame for flush mounting. For horizontal installation, with mounting adapter and seal for screwing onto a flush-mounted or hollow wall box. The protection degree IP55 is only achieved when mounted with a modular insert AP/UP from the W.1 product line.
EAN: 4011334405177.
