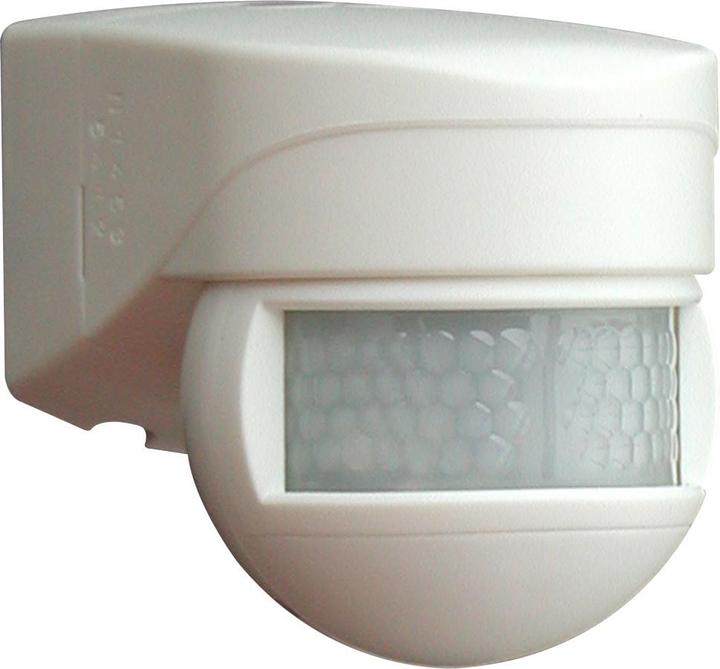

BEG B.E.G. 93541

BEG Brück Electronic multisensor LCMini120BMSDALI-2ws

Manufacturer: BEG Brück Electronic
Designation: Multisensor DALI-2, sw
Type: LCMini120BMSDALI-2ws
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Other
Radio bidirectional: No
Finish: Other
Mounting type: Surface-mounted
Material: Plastic
Material grade: Other
Surface protection: Untreated
Finish: Matt
Colour: White
RAL number (similar): 9010
Transparent: No
With bus coupling: Yes
Extension input: No
Operating mode switch: No
Animal track: Yes
Staircase monitoring: No
Response brightness adjustable: No
Teach function for response brightness: No
Self-learning switch-off delay: No
DALI-2 certified: Yes

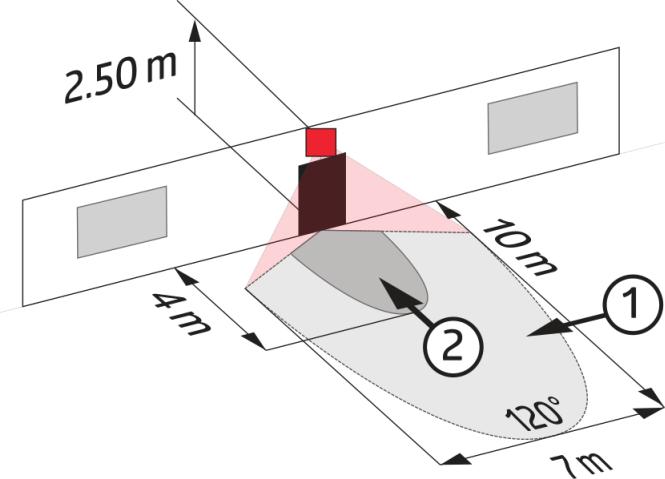

Optimum mounting height: 2.5 m
Max. range to one side: 10 m
Max. range frontal: 4 m
Detection field diameter on floor: 7 m
Number of channels: 1
Min. switch-on time: 1 s
Max. switch-on time: 30 min

Further details: DALI-2 multisensor (input device) with a detection range of 120 degrees, DALI-2 certified product, supply voltage via DALI bus, movable spherical head, detection range can be restricted by cover louvres, DALI multimaster technology according to IEC 62386 Part 103. Instance 0 provides information on room occupancy and motion detection. Instance 1 provides LUX values according to IEC 62386 part 304 on the DALI bus, parameterization is possible via a required multimaster application controller from any manufacturer. This controller must support IEC 62386 parts 101/103/303/304. Individual sensitivity adjustment of the PIR sensor, status LEDs can be activated/deactivated.
