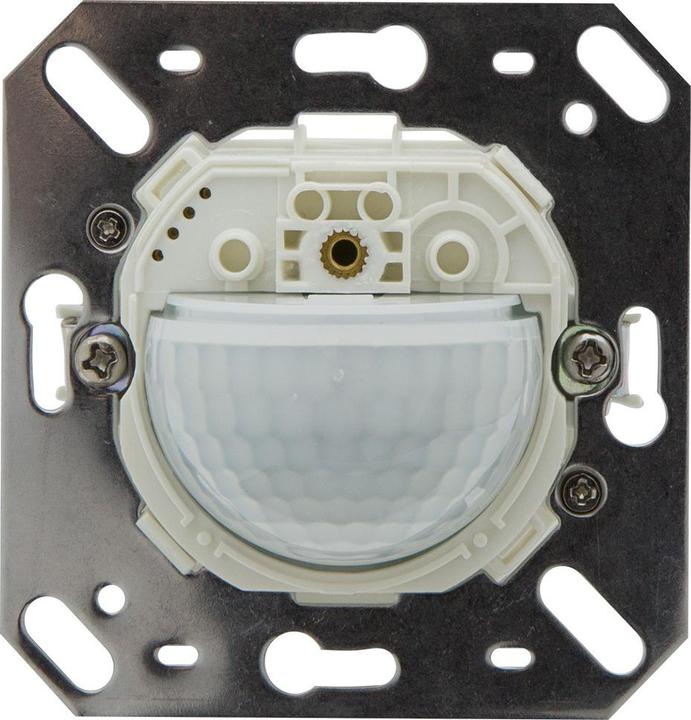

BEG B.E.G. 93525

BEG Brück Electronic presence detector Indoor180KNXs-DXo.R.

Manufacturer: BEG Brück Electronic
Designation: Presence detector KNX
Type: Indoor180KNXs-DXo.R
Bus system KNX: Yes
Version: Presence detector
Mounting type: Flush-mounted
Material quality: Other
Transparent: No
With bus coupling: Yes
Extension input: Yes
Creep protection/back field monitoring: No
Operating mode switch: No
Animal track: No
Staircase monitoring: Yes
Response brightness adjustable: Yes
Teach function for response brightness: Yes
DALI-2 certified: No
Optimum mounting height: 1.1 m
Max. range to one side: 10 m
Max. range to the other side: 10 m
Max. range frontal: 3 m
Detection field diameter on floor: 10 m
Min. switch-on time: 1 s
Max. switch-on time: 1440 min
Duty cycle: 1440 min

More details: KNX presence detector with integrated KNX bus coupler, especially for installation in walls, KNX Secure capable, HCL/RGB control. Parameterization from ETS 5 for integration into KNX systems, individual sensitivity adjustment of the PIR sensor, mixed light measurement by means of internal and external (optional) light sensors, intelligent semi-automatic mode, presence-independent control mode (twilight detector), fully automatic mode (optional). Control of up to three lighting groups by means of offset (external influence possible), short presence, self-adjustment of overrun time, corridor function, various blocking functions, soft start, two logic modules, calling up of light scenes, switchable status displays, temperature and noise sensor.
EAN: 4007529935253.
