Awenta Ventilation system

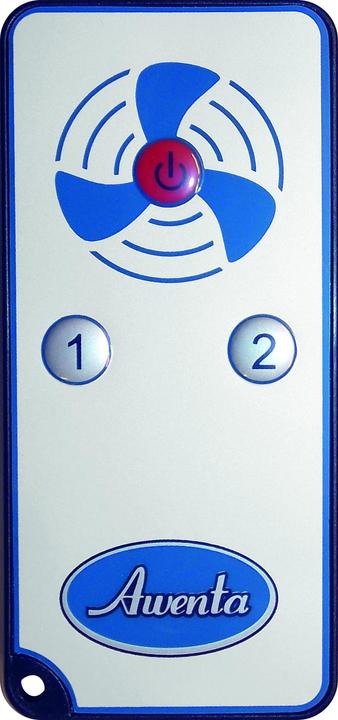

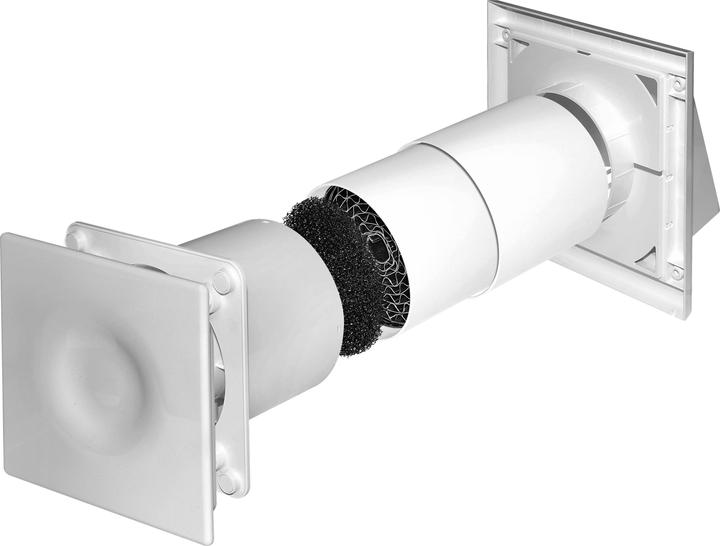

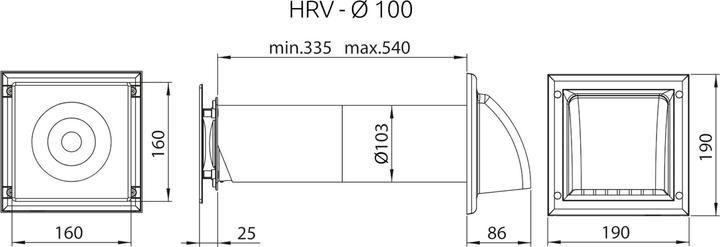

Dimensions and technical details: 220-240 V ~ 50 Hz. Single room ventilation system for heat recovery. Housing colour: white. Nominal size of duct: 100 mm. Motor wattage: 1.5 / 2 W. Airflow rate: 35 / 50 m³/h. Sound pressure level Lp-3m: 32 / 36 dB(A). Permissible temperature range of air: -20°C to +40°C. Protection code: IPX4 splashing water protection. Protection class: II. Weight: 1.5 kg. Front panel: 160 x 160 x 25 mm. Outer hood: 190 x 190 x 86 mm. Telescopic tube: Ø 103 mm x 335 - 540 mm. Includes filter. Includes remote control: 2 fan speeds / off. Heat recovery mode: two cycles alternate automatically every 60 seconds. Cycle I: Warm air is extracted from the room. The extracted air warms and dampens the heat storage vessel. Cycle II: Fresh air flows through the heat accumulator, absorbing the stored heat and humidity until reaching room temperature.
