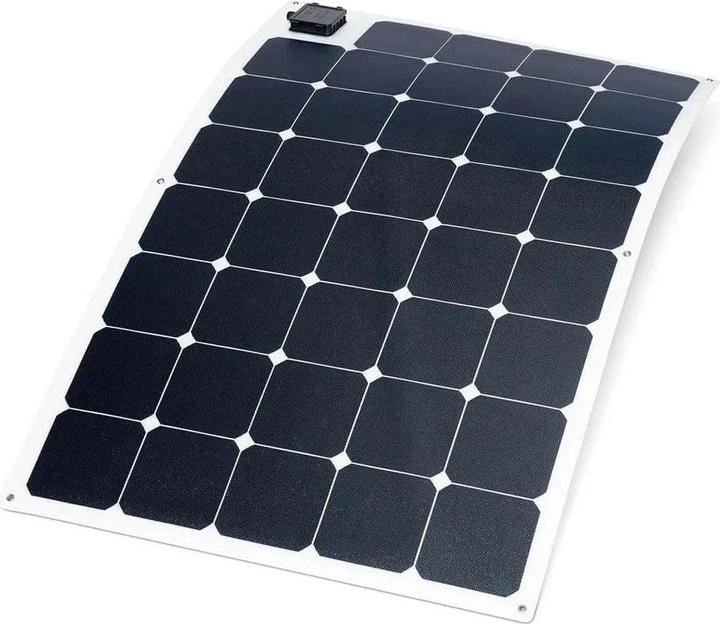

Autosolar Solar panel flexible 140W, IP65

140 W, 2.35 kg
Delivered between Wed, 18.6. and Thu, 19.6.
Only 1 item in stock at third-party supplier
Supplied by

Product details

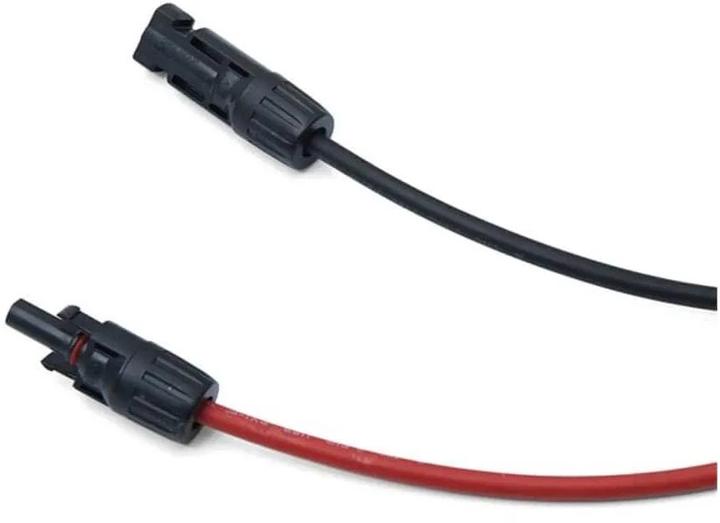

Highly efficient and flexible solar module with MC4 cable. The solar panels are flexible and can be mounted on curved or bent surfaces. Monocrystalline cells with back contact technology. Low height of 3 mm. 90 cm long cable with MC4 connector. Front-side junction box. Open circuit voltage (Voc): 28.8 V, maximum voltage under load (Vpm): 24 V, maximum current under load (Imp): 5.83 A. The only 3 mm high, semi-flexible solar modules can be walked on with soft shoes such as boat shoes. They are therefore ideally suited for installation on a boat or camper. Thanks to the back contact technology, the light yield is significantly higher than that of conventional monocrystalline solar modules. The front features a waterproof junction box (IP65 weatherproof) with an integrated connection cable and waterproof connector, allowing for full-surface installation. The solar modules are flexibly bendable and can be glued or screwed onto curved or bent surfaces. Efficient utilization of solar energy with monocrystalline solar cells. This solar module consists of monocrystalline cells, meaning it contains pure crystalline silicon. If you only have a relatively small south-facing roof area available, then solar power production with monocrystalline modules is the ideal solution: among the various available photovoltaic module types, monocrystalline ones are the most effective, both in direct sunlight and in low light. This way, you maximize electricity output from a small footprint and cover your entire consumption - even if it is relatively high - with environmentally friendly self-production.

Key specifications

Length
106 cm
Width
68.50 cm
Cell type
Monocrystalline
Nominal power
140 W
Item number
25005562

General information

Manufacturer
Autosolar
Category
Solar panels
Manufacturer no.
flex140w
Release date
6.5.2021

Colour

Colour
White
Exact colour description
White
Frame colour
White

Material

Material
Monocrystalline cells

Solar Technology properties

Socket type
MC4
Plug type
MC4
Protection type (IP code)
IP65

Solar panel properties

Cell type
Monocrystalline
Solar panel design
Flexible
Nominal power
140 W
Voltage (MPP)
24 V
Open circuit voltage (UMPP)
28.80 V
Number of cells
39 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
106 cm
Width
68.50 cm
Height
0.30 cm
Weight
2.35 kg
