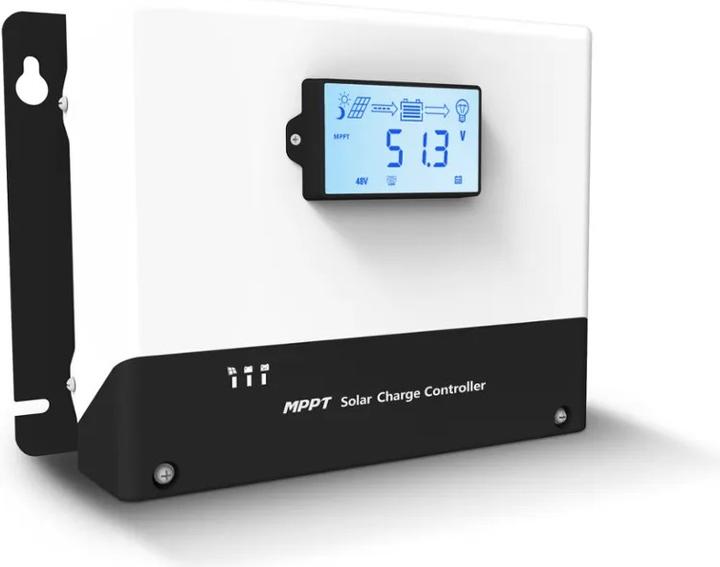

Autosolar Solar charge controller MPPT 85A

MPPT charging technology is ideal for utilizing the full power (20-35% more solar energy yield) of your solar panel and charging your solar batteries at 12, 24, 36, or 48 volts. MPPT solar charge controller with up to 85A charging current for 12V, 24V, 36V, and 48V batteries. Maximum PV voltage is 250V, maximum PV power is 1100W/12V, 2200W/24V, 3300W/36V, and 4400W/48V. More usable solar power through fast Maximum Power Point Tracking. Charging current up to 85A. Compatible with nearly all module types due to the high PV input voltage of up to 250V. The controller automatically adjusts to the battery voltage.

A solar charge controller regulates the voltage of the solar panels to an optimal level for the batteries. The nominal voltage of 12V, 24V, 36V, or 48V is automatically recognized by the charge controller. By applying MPPT technology, the solar charger can achieve up to 35% more energy yield from the solar panel into the battery compared to conventional chargers. With a three-stage charging curve and selectable charging voltages, the charge controller can be configured to precisely set the charging parameters according to the specific battery requirements.

MPPT (Maximum Power Point Tracking) automatic system voltage detection 12V/24V/36V/48V. Solar input voltage range up to 250V. Battery deep discharge protection, overcharge protection, overvoltage protection, and desulfation protection. Temperature-dependent charging parameter correction, over-temperature protection, overcurrent protection, and polarity protection. Separate load output with the option to disconnect. The system is fully protected against overvoltage, over-temperature, and reverse polarity. An automatic current limit allows for the full current to be utilized without the user needing to worry about potential overload.
