Autosolar Mounting set for plain tile solar panels

For Beaver Tail Tiles

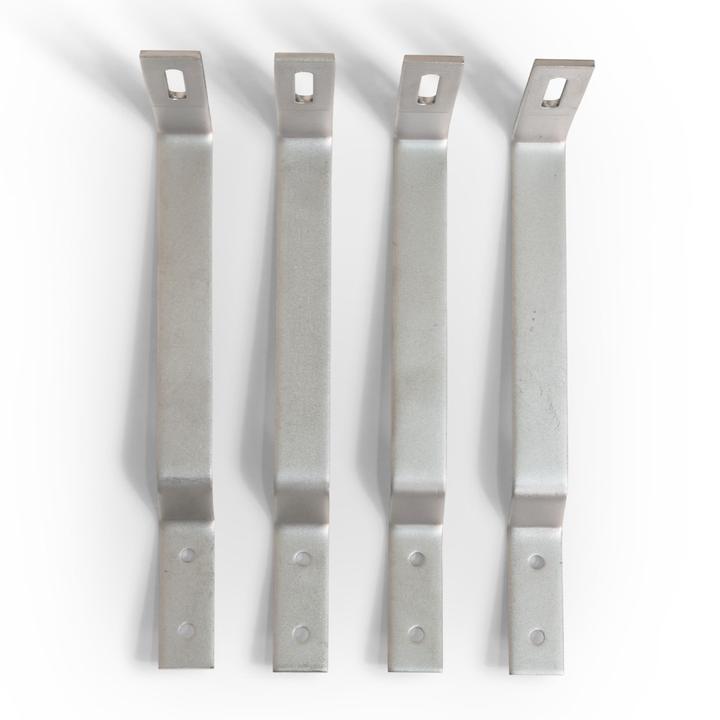

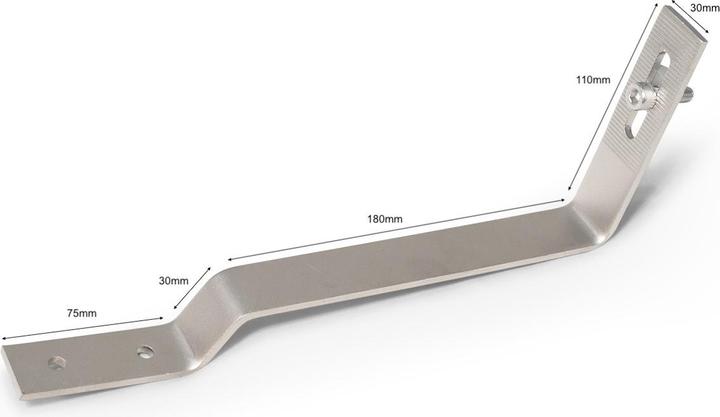

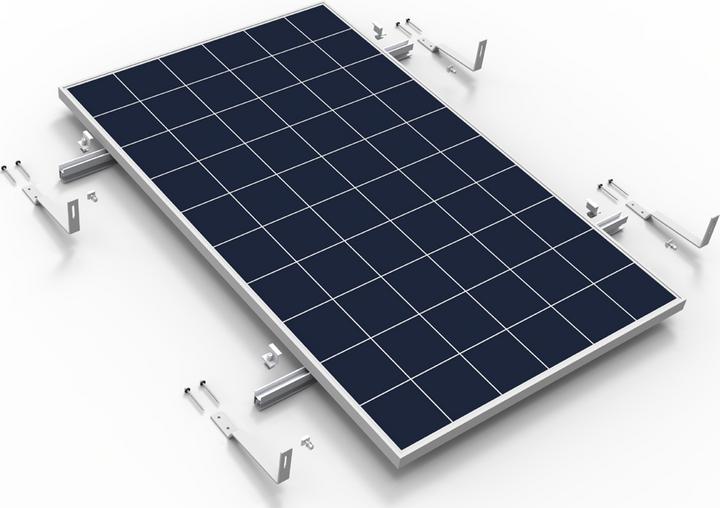

With our Beaver Tail Mounting Kit, you can securely and neatly anchor your solar panels to the roof. The kit includes the beaver tail hooks, mounting screws, support rails, and nuts. Everything you need to attach one or more panels to the roof is included. You can choose the frame height to match your panels. Our panels have the following frame heights:

100 W monocrystalline = 30 mm height
160 W monocrystalline = 35 mm height
335 W / 400 W monocrystalline = 40 mm height

Expandable
Do you want to adapt your solar system to your new needs and install more solar panels? No problem, our mounting system is designed so that you can easily add an extension and install additional modules in the future.

Technical Data

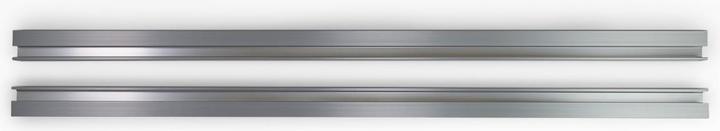

Rail length: 115 cm (max. panel width 108 cm)
Material: Aluminum or stainless steel
Suitable for roof tiles up to 40 mm height
Solar panel height selectable

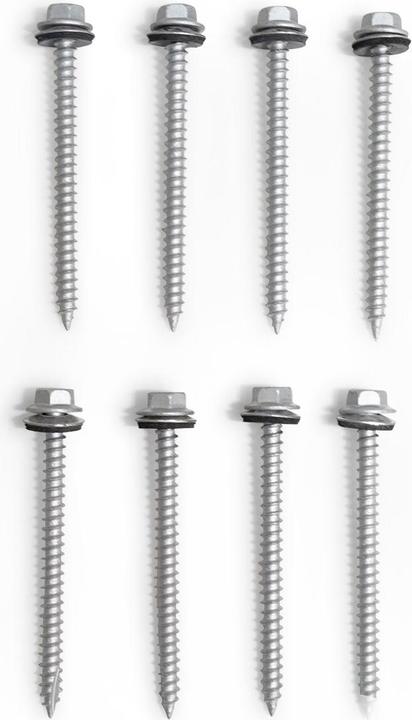

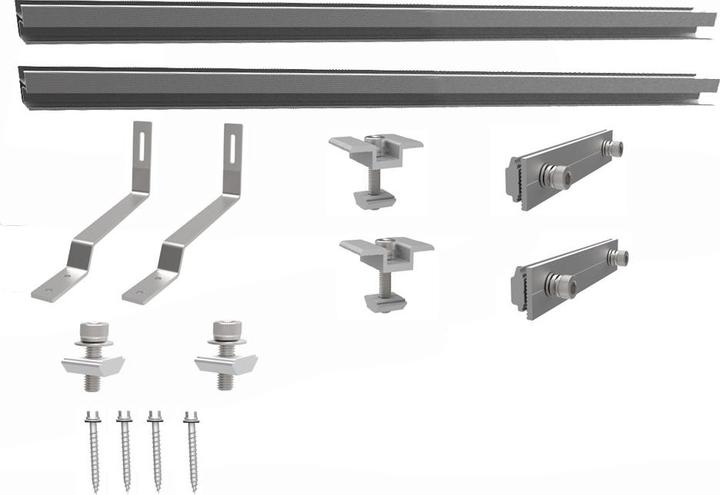

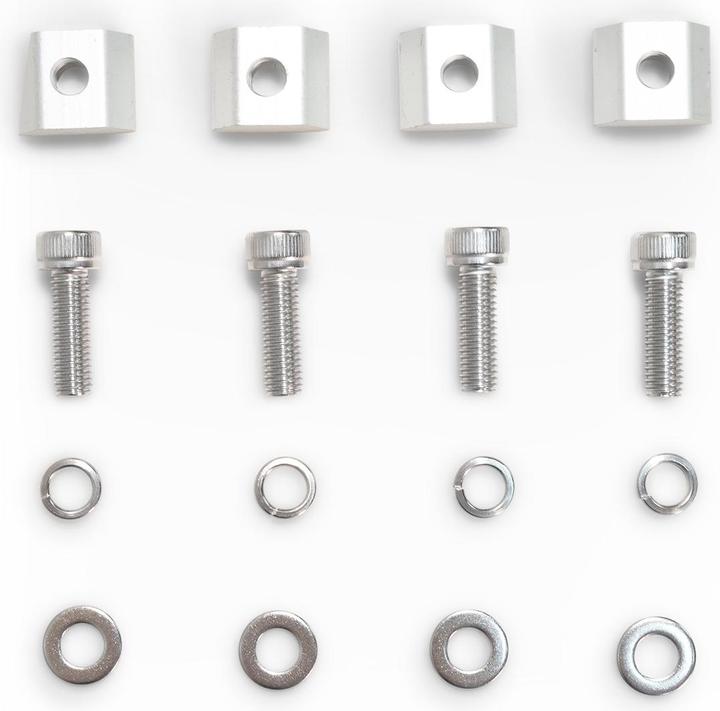

Set for 1 solar panel includes: 4 beaver tail hooks, 8 screws, 4 end clamps, 4 nuts, and 2 support rods
Extension per additional panel includes: 2 beaver tail hooks, 4 screws, 2 bridge clamps, 2 nuts, 2 connectors, and 2 support rods

Custom Solution

Do you have more solar panels or do yours have different dimensions? Then simply contact us and we will offer you a custom solution.
