Autosolar

For Roof Tiles

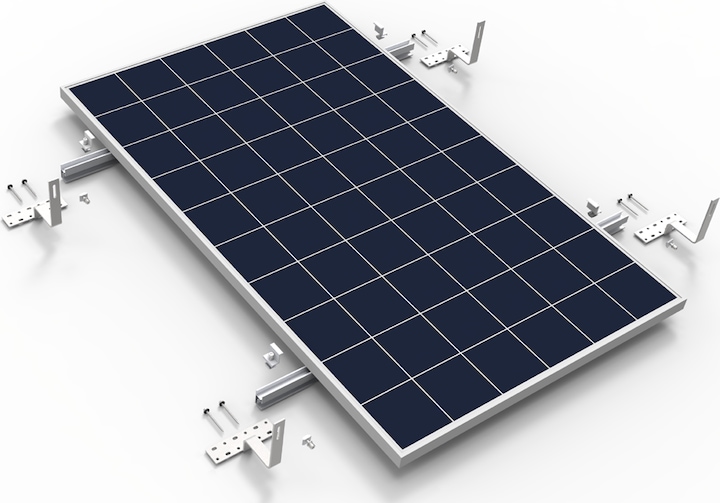

With our roof tile mounting kit, you can securely and neatly anchor your solar panels on the roof. The kit includes roof tile hooks, mounting screws, support rails, and nuts. Everything you need to install one or more panels on the roof is included. You can choose the frame height to match your panels. Our panels have the following frame heights:

100 W monocrystalline = 30 mm height
160 W monocrystalline = 35 mm height
335 W / 400 W monocrystalline = 40 mm height

Expandable
Do you want to adapt your solar system to your new needs and install more solar panels? No problem, our mounting system is designed so that you can easily add an extension and install additional modules in the future.

Technical Data

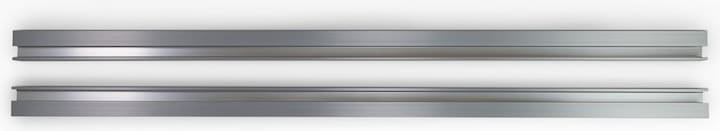

Rail length: 115 cm (max. panel width 108 cm)
Material: Aluminum or stainless steel
Suitable for roof tiles up to 40 mm height
Solar panel height selectable

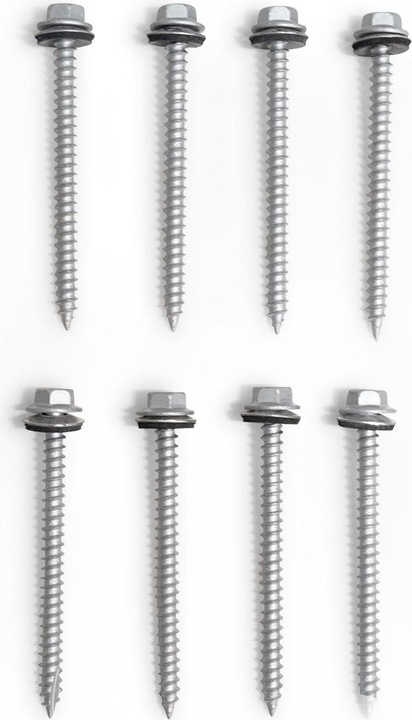

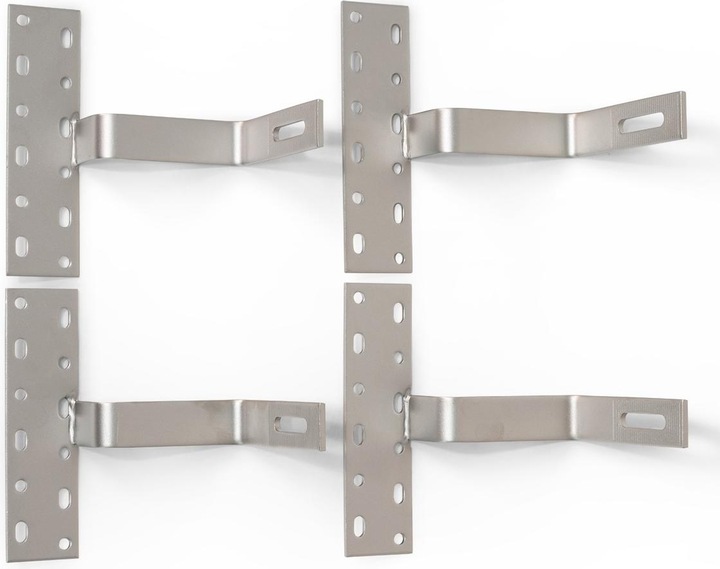

Set for 1 solar panel includes: 4 roof tile hooks, 8 screws, 4 end clamps, 4 nuts, and 2 support bars
Extension per additional panel includes: 2 roof tile hooks, 4 screws, 2 bridge clamps, 2 nuts, 2 connectors, and 2 support bars

Custom Solution

Do you have more solar panels or do yours have different dimensions? Then simply contact us, and we will offer you a custom solution.
