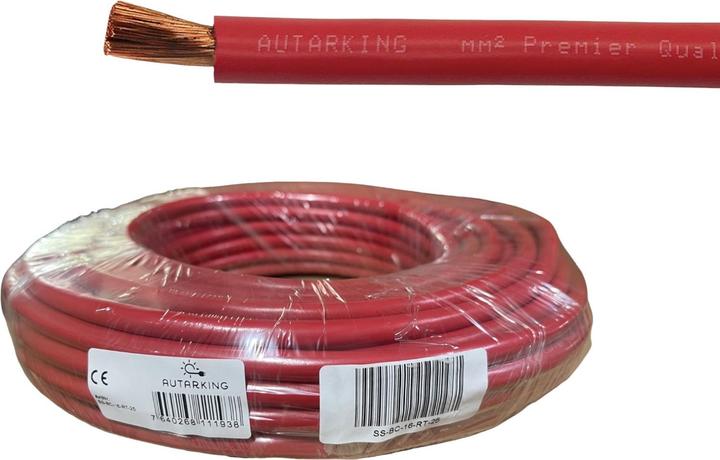

Autarking Battery / starter cable Highly flexible - 16mm2 red -25m

Battery cable for high current applications - flexible - 16 mm - red

Flexible, finely stranded DC cable for high current applications such as battery, inverter, or charger wiring. The smaller diameters are perfect for solar charge controllers and charge boosters.

Its flexibility is similar to that of SGF cable, although the insulation material differs.

Please check our selection of crimp terminals in various sizes under accessories.

Specifications:

Cable cross-section: 16 mm² battery cable

Standard: GB/T 5023.5-2008

Conductor structure:

• Copper wires: 322 pieces
• Copper wire outer diameter: 0.25 ± 0.002 mm
• Conductor type: OFC (Oxygen-Free Copper)
• Conductor resistance at 20°C (MΩ/km): ≤ 0.0046

Insulation:

• Insulation material: Rubber and plastic 105℃
• Rated voltage: 450/750 V
• Insulation outer diameter: 8.2 ± 0.1 mm
• Average diameter: 1.45 mm
• Minimum thickness: ≥ 1 mm
• Flame retardant standard: FT-1
• Anti-UV: Yes
• Operating temperature range: -40°C to +105°C
• Color: red
• Appearance: No impurities, no scratches, smooth, round

Environmental testing: ROHS (no Pb, Cd, Hg, Cr+6, PBBs, PBDEs)

Voltage testing of the finished product: Soak in water at room temperature for 1 hour, apply 1.5 kV voltage for 5 minutes, no breakdown

Dielectric test: 6 kV

Burn test: -.
