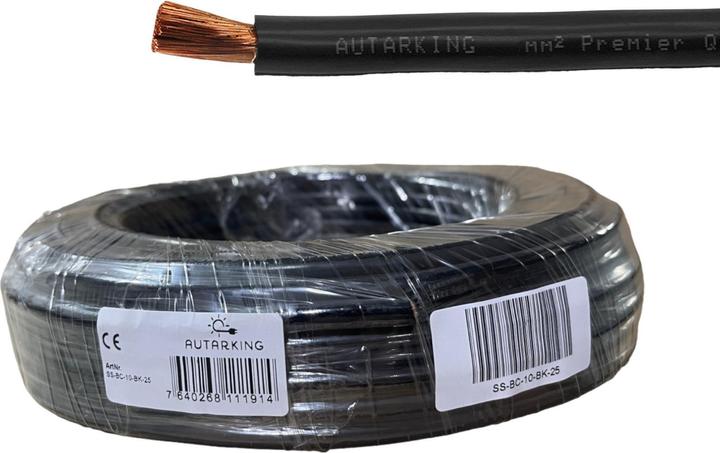

Autarking Battery / starter cable Highly flexible - 10mm2 black -25m

Battery cable for high current applications - flexible - 10mm - black

This flexible, fine-core DC cable is designed for high-current applications such as battery, inverter, or charger cabling. The smaller diameters are ideal for solar charge controllers and charge boosters.

Specifications:

• Cable section: 10mm² battery cable
• Standard: GB/T 5023.5-2008
• Conductor structure:
• Copper wire: 198 pcs
• Each copper wire OD: 0.25 ± 0.002 mm
• Conductor type: OFC
• Conductor resistance at 20°C (MΩ/km): ≤0.0056

Insulation:

• Insulating material: Rubber and plastic, 105°C
• Rated voltage: 450/750V
• Insulating OD: 6.6 ± 0.1 mm
• Average thickness: 1.2 mm
• Minimum thickness: ≥0.8 mm
• Flame resistance standard: FT-1
• Anti-UV: Yes
• Working temperature range: -40°C to +105°C
• Colour: Black
• Appearance: No impurities, no scratches, smooth, round

Environmental testing: ROHS (No Pb, Cd, Hg, Cr+6, PBBs, PBDEs)

Finished product voltage test: Soak in water at room temperature for 1 hour, apply voltage of 1.5KV for 5 minutes, no breakdown.

Spark test: 6kV

Burning test: -.
