Autarking Balcony solar set

400 W
Delivered between Fri, 13.6. and Sat, 14.6.
Only 4 items in stock at supplier

Product details

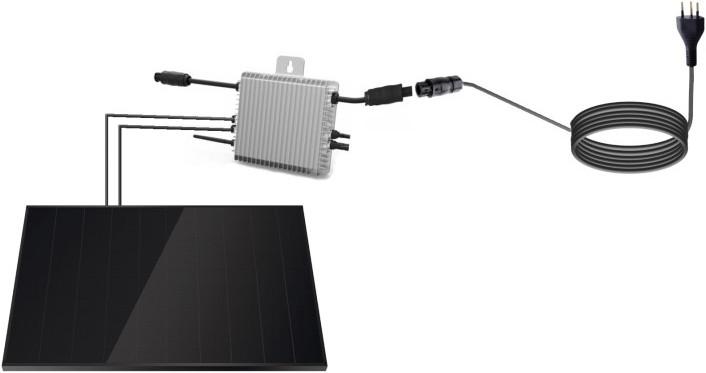

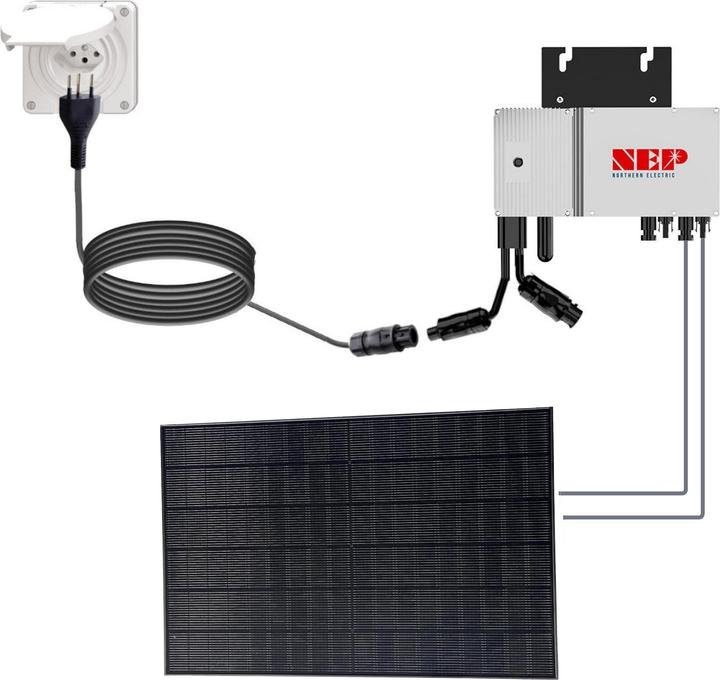

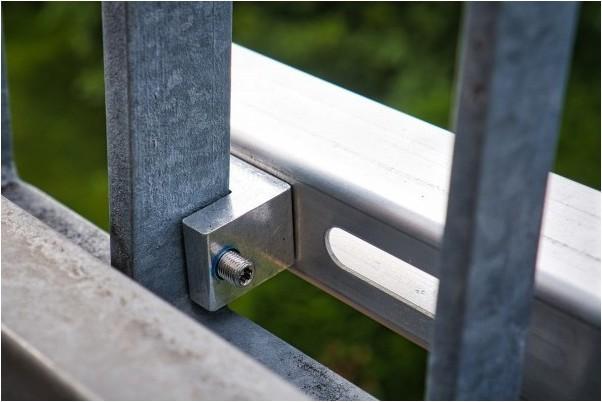

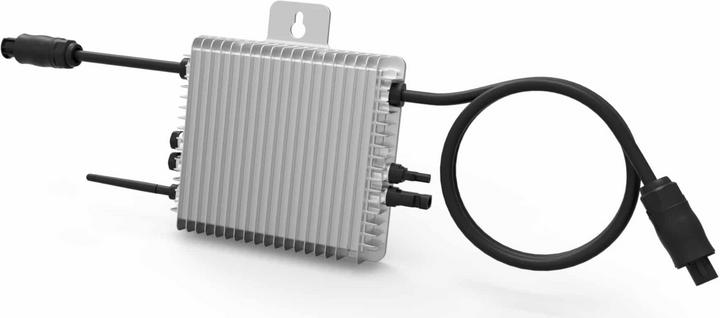

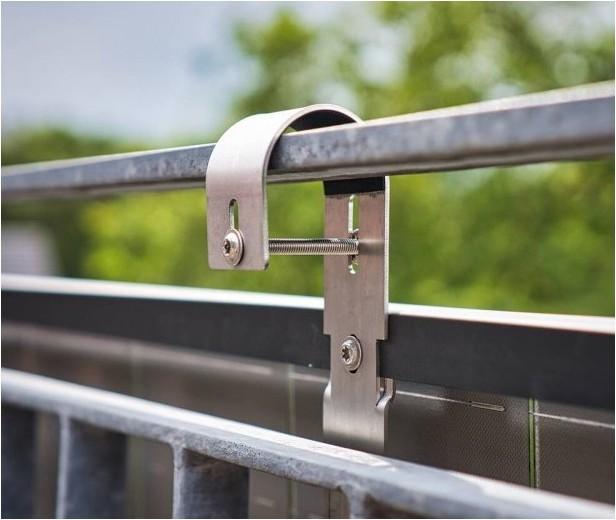

Balcony Solar Set 410Wp - for square railing posts. Easily and without approval (registration required) use your own solar power. In Switzerland, you can feed up to 600W of solar energy into your home network without approval. This energy is then consumed directly by the connected devices, reducing the amount of energy purchased from the grid. Excess energy is fed back into the power grid. You only need a power outlet on the balcony and a railing suitable for installation. The balcony solar set provides you with all the necessary components: an approval-free grid inverter with 600W, 2 MPPT trackers with 210 - 400W each, 1x Mono Shingle solar panel 410Wp, and 1x SolarHook balcony solar mounting kit - Type_e. Here's how it works: Attach the solar panels to your suitable balcony railing using the SolarHook mounting system. Install the Sun micro-inverter and connect it to the solar panels with solar cables. Notify the electricity provider with a declaration of conformity. Connect the accessory connection cable (please order separately) to the Sun micro-inverter and plug it into the balcony outlet.

Installation instructions for Plug & Play systems

In Switzerland, small plug & play systems up to a maximum nominal output of 600W may be installed without authorisation. The prerequisite is that the grid operator is informed about the operation of the solar system. A template for registering the system can be found in the documents section.

Protective device Plug & Play systems

For proper operation of the system, it must either be protected by an RCD (PRCD, type B, 30 mA) at the external socket or a residual current monitoring unit (RCMU) sensitive to all currents must be verifiably installed in the inverter/grid interface.

Key specifications

Solar system type
Balcony power plant
Output power (total)
400 W
Documents
Item number
23105000

General information

Manufacturer
Autarking
Category
Solar generators
Manufacturer no.
BS-360-Set2
Release date
15.11.2022
Sales rank in Category Solar generators
7 of 195

Solar Technology properties

Solar system type
Balcony power plant

Solar panel properties

Cell type
Monocrystalline
Number of solar panels
1 x
Output power (per panel)
210 W
Output power (total)
400 W
Plug type
MC4

Voltage Transformer Properties

input voltage
60 V
Output voltage
230 V
Power output
600 W
Additional properties
WLAN module

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery

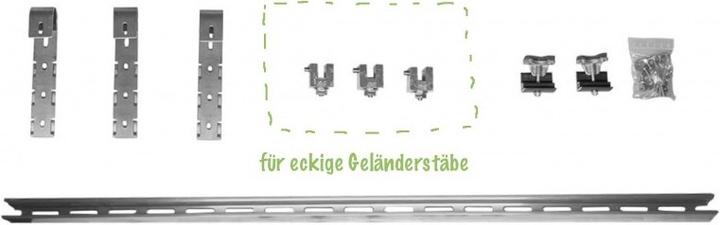

1x Betterie 230V connection1x retaining rail extension for wide panels1x solar extension cable 1.8m1x solar panel 440Wp1x SolarHook mounting set

Product dimensions

Length
116 cm
Width
169 cm

Package dimensions

Length
180 cm
Width
116 cm
Height
35 cm
Weight
350 kg

30-day right of return
24 Months Warranty (Bring-in)
