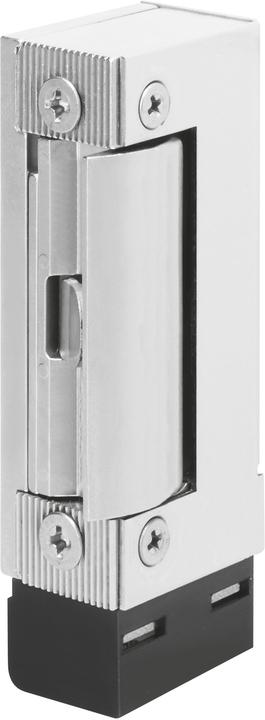

Assa Abloy FF 332 RRAKRR Fixed332.80F-----F91Latch without faceplate 24V GS Universal

The 332 fail-unlocked electric strike from Effeff, designed especially for locking doors along escape routes, is considered the world's smallest escape door strike due to its small dimensions. The compact design of the Effeff Escape Door Strike 332 is comparable to a standard electric strike, ensuring fast and simple installation in a wide variety of different profiles and frames.

A further advantage is the secure and reliable unlocking procedure under a preload of up to 3,000 N with a holding power of 100% in the event of a power failure. The escape door strike ensures that the door strike latch bolt functions reliably even under these conditions.

Key features include:

• Test certificate (MPA – Material Testing Institute – Dortmund) 120002494494.10
• Small symmetrical construction shape
• Minimum 2,000 N, maximum 3,000 N holding force in accordance with prEN 13637
• Unlocking under preload with 100% holding force
• Monitoring contact as microswitch and armature contact as light barrier
• DL/DR and horizontal universal installation position
• Low current consumption: 100 mA (24 V), 200 mA (12 V)
• Compact fitting dimensions
• Adjustable with fix grooves in the housing
• Approved for installation as a secondary locking system on fire doors
• One piece escape door strike
• Armature contact not potential-free; operation with Effeff control terminals without coupling relay possible
• 24 V, with fixed latch.
