asecos Type 90 fire resistant vertical pull-out cabinet, 1 drawer, 4 shelves
44.90 cm, 196.60 cmProduct details

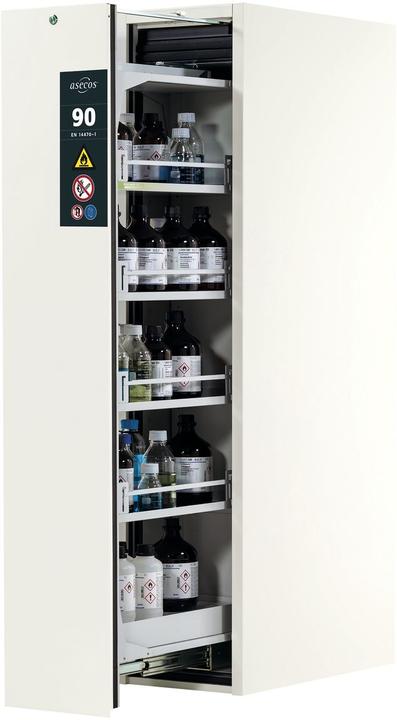

Type 90 fire resistant vertical pull-out cabinet, 1 drawer, 4 shelves, laboratory white.
For regulation compliant storage of flammable media in laboratories in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3). Vertical pull-out technology that provides access to containers from both sides, opened and closed using electric motor. Proven protection against fire for 90 minutes, GS tested and CE compliant - self-closing in the event of fire.
Type 90 fire resistant vertical pull-out cabinets (chemist's cupboards): Clearly organised storage and easy, direct access to stored containers from both sides, etc. Safe and regulation compliant storage of flammable hazardous goods in work rooms. Function/construction: Robust and durable: stable, high quality and scratch resistant outer body with powder coated (textured) surface. Opened and closed by electric motor: the vertical drawers open and close at the touch of a button. Perfect access: the vertical drawers ensure clear organisation and easy access to all stored containers. Always closed: automatic self-closing doors as standard, with optical and acoustic warning signal before drawers are closed after approx. 60 seconds. No unauthorised use: vertical drawers lockable using profile cylinder (compatible with lock systems) and lock status display (red/green). Simple installation: integrated feet for levelling on uneven surfaces. Ventilation: integrated ventilation system for connection (NW 75) to a forced ventilation unit. Certificates: - Fireproof for 90 minutes - Tested model in accordance with EN 14470-1 - Compliant with EN 16121/16122 - Conforms to CE Interior fittings: - 4 shelves, max. load 50 kg, powder coated sheet steel, light grey RAL 7035 - 1 base sump, capacity 13 litres, powder coated sheet steel, light grey RAL 7035 - 1 perforated sheet insert for base sump (in accordance with StawaR), max. load 50 kg, powder coated sheet steel, light grey RAL 7035.
Height | 196.60 cm |
Material group | Metal |
Width | 44.90 cm |
Type of workshop cabinet | Pull-out unit |
Item number | 15763890 |
Manufacturer | asecos |
Category | Workshop cabinets |
Manufacturer no. | 3503400535100 |
Release date | 30.4.2021 |
External links |
Colour | Grey |
Exact colour description | Lab White |
Material group | Metal |
Material | Powder coated, Sheet steel, Special fire protection panels |
Surface finish | Powder coating |
Type of workshop cabinet | Pull-out unit |
Number of shelves | 4 |
Load-bearing capacity per floor | 50 kg |
Load capacity | 50 kg |
Closure type | Profile cylinder |
Number of doors | 1 x |
Number of compartments | 4 x |
Delivery condition | Mounted |
Model series | V-MOVE-90 |
Internal depth | 775 mm |
Interior height | 1750 mm |
Internal width | 331 mm |
Housing load capacity | 50 kg |
Case material | Steel |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 86 cm |
Width | 44.90 cm |
Height | 196.60 cm |
Depth | 86 cm |
Weight | 344 kg |
