APC Outlet box 100A KSB100SE5

Ratings
BrandMore from APC
Delivered between Fri, 10.4. and Mon, 13.4.
Only 3 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

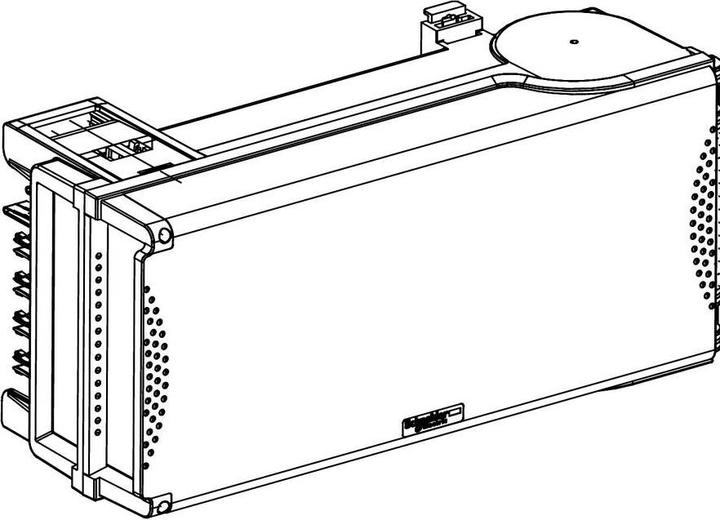

Schneider Electric Distribution Box KSB100SE5

Manufacturer: Schneider Electric
Designation: Distribution Box 100A
Type: KSB100SE5
Number of conductors (without ground): 3
Number of poles: 4
Rated current at AC 50 Hz: 100 A
Rated voltage at AC 50 Hz: 230..690 V
Phase selection: no
With locking: no
Type of outlet: cable entry
Socket design: other
Protection: none
Color: white
RAL number: 9001
Protection class (IP): IP55
Length: 444 mm
Width: 128 mm
Height: 220 mm

The Schneider Electric Distribution Box KSB100SE5 is a Canalis tap-off unit for KT and KS. It is used for medium voltage distribution and the TN-C grounding system. The operating voltage ranges from 230 VAC 50/60 Hz to 690 VAC 50/60 Hz. The rated operational current is 100 A at 35 °C. Installation is done via plug-in with fixed polarity and a white surface treatment according to RAL 9001, as well as with busbar polarity 3L + PEN.

It provides protection for fuses of size 00 (fuse must be ordered separately). The device can be switched off by opening the door to the right. Canalis KS busbar distributors are compatible with sockets, while Canalis KT busbar distributors are compatible with KS-type sockets.

The box offers IP55 protection, which complies with the IEC 60529 standard, and is IK08 compliant with IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6 and meets the requirements of Green Premium (RoHS/REACH).

Key specifications

Exact colour description
RAL 9001
Area of use
Inside
Protection type (IP code)
IP55
Length
44.40 cm
Width
12.80 cm
Height
22 cm

General information

Item number
21165384
Manufacturer
APC
Category
Cable boxes
Manufacturer no.
KSB100SE5
Release date
17.5.2021
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
RAL 9001

Material

Material group
Plastic
Material
Plastic

Application range

Area of use
Inside

Safety

Protection type (IP code)
IP55

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
331.15 kg
Climate contribution
CHF 7.87

Product dimensions

Length
44.40 cm
Width
12.80 cm
Height
22 cm
Weight
5000 g
