Amf Intermediate element no. 7600Z M12 30 kN

Ratings
BrandMore from Amf
Delivered between Tue, 7.7. and Thu, 23.7.
free shipping

Product details

Made of alloyed quenched and tempered steel with a forged, black galvanized finish.

Application:
1. Position the intermediate element on the tool table using the fastening set.
2. Mount the support element of the power clamp on the intermediate element, also using the fastening set.
3. By operating the adjusting screw, the clamping arm can be continuously adjusted in height, allowing the workpiece to be clamped. Further clamping heights are possible by mounting several intermediate elements.

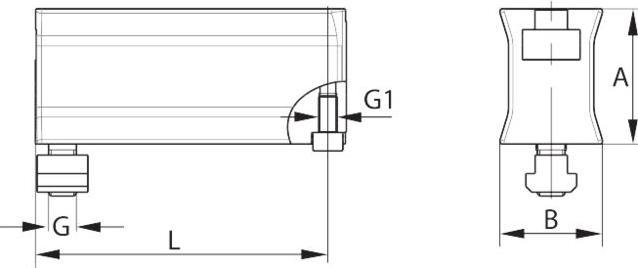

Further technical features:
A: 60 mm
B1: 14 mm
B2: 45 mm
G1: M8
Thread: M12
E1: 12 mm
L2: 127 mm
L: 135 mm
Suitable for: Power clamp no. 7600
M: M12.

Key specifications

tension
30 kg
Length
135 mm

General information

Item number
33528488
Manufacturer
Amf
Category
Vices + Clamps
Manufacturer No.
554821
Release date
17.5.2023

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Steel

C-Clamp Features

tension
30 kg

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
5.34 kg
Climate contribution
CHF 0.13

Product dimensions

Length
135 mm
Height
60 mm
Weight
2300 g
