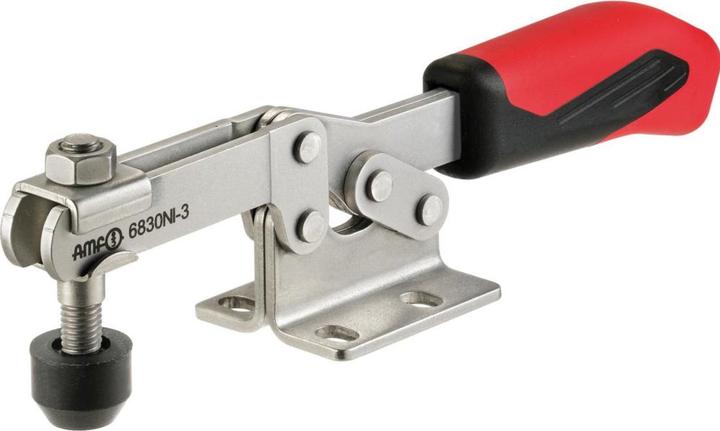

Amf Horizontal clamping device

18Ratings
Delivered between Fri, 17.7. and Mon, 20.7.
6 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

VA with horizontal foot, polished. Rivet in sizes 2 to 5 continuously in bearing bushings. Lubricated bearing points. Ergonomic, oil-resistant handle with a large hand support and soft component. Loss protection for the pressure screw at the end of the clamping arm. Complete with stainless steel pressure screw No. 6890NI, also suitable for the food industry.

Additional technical specifications:

  • F: 14 mm
  • Design: horizontal foot
  • a*: 90°
  • P: 50 mm
  • L: 13 mm
  • K: 7 mm
  • C: 25.7 mm
  • D: 6.5 mm
  • F1: 1.8 kN
  • Pressure screw: M8 x 45
  • HW min.: -2 mm
  • L1: 206 mm
  • I: 15 mm
  • F2: 2.5 kN
  • Material: stainless steel
  • B: 73 mm
  • M1: 31.6
  • H: 32 mm
  • N: 44.5 mm
  • E: 36 mm
  • M: 22-31.8 mm
  • A: 8 mm
  • H2: 86 mm
  • H1: 48.5 mm
  • HW max.: 9 mm
  • D1: 5.1 mm.

Key specifications

tension
1800 kg
Length
206 mm

General information

Item number
10005212
Manufacturer
Amf
Category
Vices + Clamps
Manufacturer No.
95208
Release date
25.10.2018

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Metal
Material
Stainless steel, Stainless steel

C-Clamp Features

tension
1800 kg

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
10.11 kg
Climate contribution
CHF 0.24

Product dimensions

Length
206 mm
Height
48.50 mm

Package dimensions

Length
22.80 cm
Width
15.70 cm
Height
3.60 cm
Weight
337 g

30-day right of return
24 Months Warranty (Bring-in)
