Amf Horizontal clamping device

32 mm
2Ratings
BrandMore from Amf
Delivered between Thu, 21.5. and Tue, 26.5.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Horizontal tensioner with horizontal foot type 6830

  • Rivet made of stainless steel
  • From size 2, hardened bearing bushings
  • Lubricated bearing points
  • Open holding arm
  • Ergonomic handle made of red, oil-resistant plastic
  • Galvanized, passivated

Delivery: Complete with tempered, galvanized pressure screw.

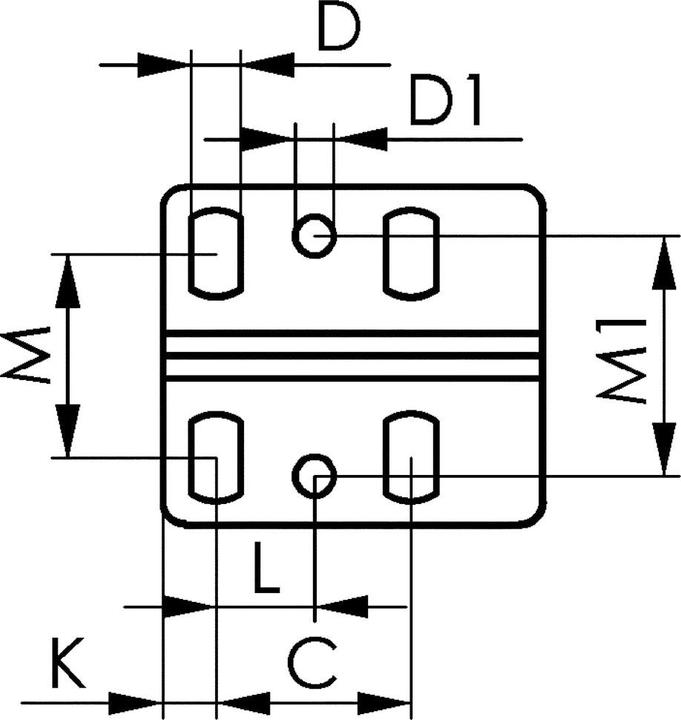

Dimension table:
A 6.0 mm
B 64.0 mm
C 26.0 mm
D 5.6 mm
D1 5.6 mm
E 32.0 mm
F 16.0 mm
H 24.0 mm
H1 45.0 mm
H2 68.0 mm
HW min. -1.5 mm
HW max. 5.0 mm
I 13.2 mm
K 6.0 mm
L 12.7 mm
L1 162 mm
M 19.5-29.5 mm
M1 28.5 mm
N 42.0 mm
P 38.0 mm

  • 90°

* The opening angle can be adjusted by pressing in a stop pin.

Technical data
Total length: 176 mm
Size: 2
Clamping height: 44 mm
Clamping force F1: 1 kN
Clamping force F2: 1.2 kN
Pressure screw: M6 x 35
Weight: 185 g

Article number: DVE4020772093020
Shop number: DVE4020772093020
EAN: 4020772093020.

Key specifications

Diameter
32 mm
Length
162 mm

General information

Item number
10005143
Manufacturer
Amf
Category
Vices + Clamps
Manufacturer No.
93021
Release date
12.12.2025
External links
Manufacturer's site (de)

Colour

Colour
Black, Red, Silver
Exact colour description
Black, Red, Silver

Material

Material group
Metal
Material
Stainless steel

C-Clamp Features

Type of clamping device
One hand tong
Diameter
32 mm

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
1.11 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
162 mm
Width
57 mm
Height
45 mm
Weight
191 g

Package dimensions

Length
10.90 cm
Width
4.80 cm
Height
2.40 cm
Weight
192 g
