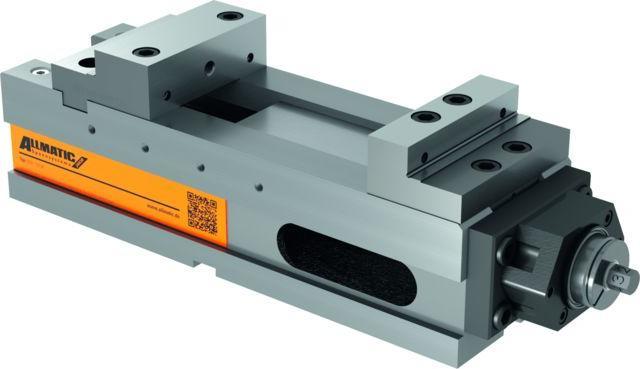

Allmatic NC high-pressure clamp NC8
Delivered between Sat, 14.6. and Sat, 5.7.
Product details
Version: Includes drilling 25H6 M10 for zero-point clamping system, with a dimension of 200 mm. Note: Dimension/jaw interface NC 8 is identical to Allmatic TC / LC. NC 8 (No. 360405) replaces the products LC (No. 360500) and TC (No. 360400). Sizes 125 MX and 125 LX are delivered with jaws No. 361295 125 and No. 361296 125. Scope of delivery: Includes 2 stepped jaws (standard!), 1 hand crank, 4 clamping pads. Use: Can be used horizontally or laterally, as the side surfaces are ground with an accuracy of -0.05 mm.
Length | 483 mm |
Items per sales unit | 1 x |
Item number | 45472870 |
Manufacturer | Allmatic |
Category | Vices + Clamps |
Manufacturer no. | 692 191 8000 055 |
Release date | 7.5.2024 |
Type of clamping device | Bench vise |
Jaw height | 39.50 mm |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 483 mm |
Height | 100 mm |
Weight | 35000 g |
Specifications may include unverified machine translations.
