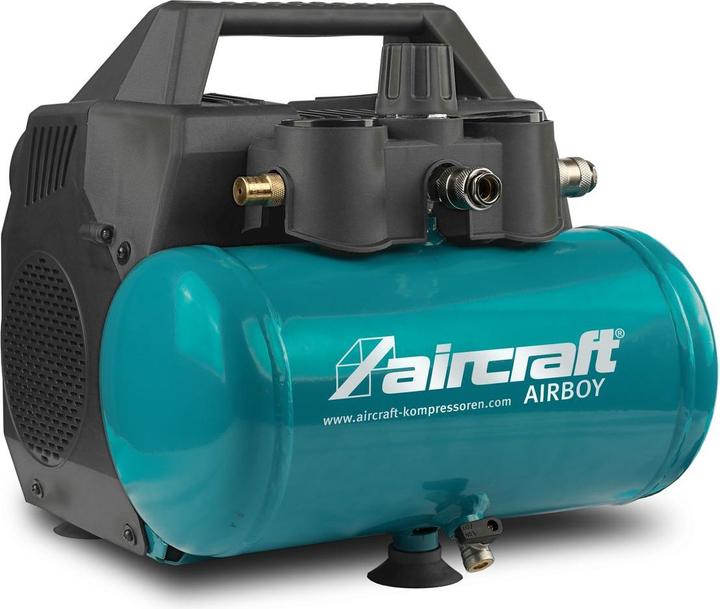

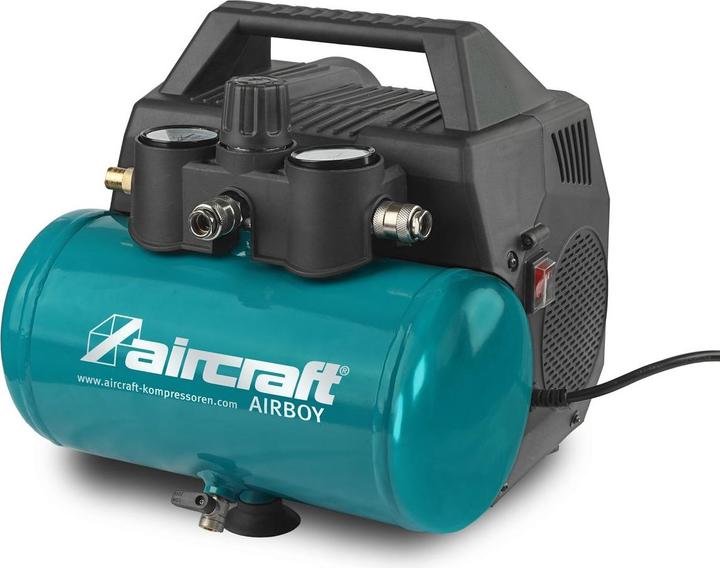

Aircraft Piston compressor 131 OF E AIRBOY

Aircraft piston compressor 131 OF E Airboy, Article No. 2001225

• For universal use
• Oil-free piston compressor, therefore no oil change necessary and no oil in the condensate
• Small, compact design
• Fully automatic on/off operation
• Electric motor equipped with motor protection switch
• Compressed air extraction via two one-hand quick-release couplings
• Pressure reducer for infinitely variable adjustment of the desired working pressure
• One pressure gauge each for displaying the container and working pressure
• Three suction cups for a secure stand

Technical data

Dimensions and weights
Length (product) approx.: 345 mm
Width/depth (product) approx.: 340 mm
Height (product) approx.: 315 mm
Weight (net) approx.: 15.9 kg

Electrical data
Supply voltage: 230 V
Mains frequency: 50 Hz
Output power: 0.6 kW
Drive motor duty cycle: 50%

Noise emission
Sound power level Lw: 71 dB(A)
Explanation of sound power level: Sound power level in accordance with DIN EN ISO 3744 (Directive 2000/14/EC)
Explanation of sound pressure level: Sound pressure level at a distance of 1 m in accordance with DIN 45635 T 13
Sound power level Lp: 49 dB(A)

Compressor
Compressor system: WDS
Oil-free / oil-lubricated: Oil-free
Suction capacity approx.: 107 l/min
Filling capacity approx.: 42 l/min
Explanation Filling capacity: at 6 bar working pressure
Number of cylinders: 2
Number of compression stages: 1
Compressor speed: 1450 min¯¹
Piston stroke: 5.8 mm
Piston diameter: 63.7 mm

Compressed air tank
Maximum pressure: 8 bar
Tank capacity: 6 litres
Vertical / horizontal tank: Horizontal.
