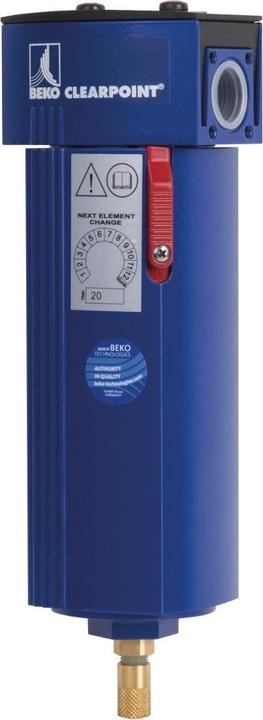

Aircraft Fine filter CLEARPOINT® 3eco S075 FWF

Fine filter Aircraft Clearpoint® 3eco S075 FWF, article no. 2042300

An innovative concept, convincing in detail:

• Flow-optimised air supply for up to 75% less resistance.
• Installation of the filter elements without cross-section-constricting and disruptive tie rods, resulting in reduced flow resistance and easy element replacement, even in confined spaces.
• 96% cavity volume of the borosilicate filter material ensures minimal pressure loss.
• Clearpoint® filter housing made of water-resistant aluminium and additionally anodised on the inside, resulting in increased operational reliability and reduced flow resistance due to permanently smooth inner surfaces.
• 100% control when opening the filter housing thanks to a secure locking mechanism; a warning signal sounds if opened under pressure.
• With thermally highly resistant (up to 120°C), mechanically highly resilient, chemically resistant and silicone-free needle felt drainage layer (in contrast to foam material of other filter brands).
• Stable construction of the filter element - inflation or tearing of the drainage layer is not possible, thus ensuring continuous utilisation of the entire filter surface.

Scope of delivery: filter element, float valve.
Volume flow: 150 m³/h.
Volume flow rate: 2500 l/min.
Volume flow measured at operating pressure: 16 bar.
Air connection: ¾ ".
Width/depth (product) approx.: 100 mm.
Height (product) approx.: 280 mm.
Function: Reliable separation of condensate, oil aerosols and particles.
Area of application: In front of dryers, valves, tools and other fittings.
Particle size: 1 µm.
Outlet concentration of oil aerosol: 0.1 mg/m³ (note on outlet concentration: at 20°C and 1 bar).
Differential pressure (dry): 0.05 bar.
Compressed air quality class according to ISO 8573-1: 2.-.2.
