Aircraft Cyclone separator ACKL 0235B

Ratings
BrandMore from Aircraft
Delivered between Tue, 23.6. and Thu, 25.6.
Supplied by
free shipping

Product details

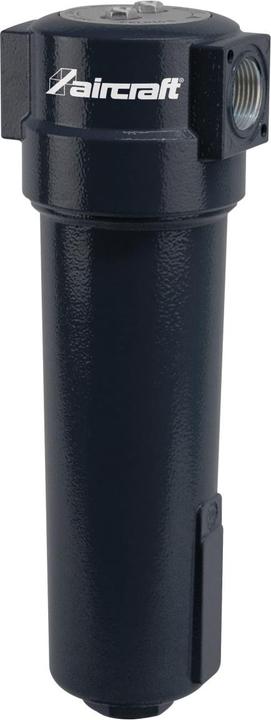

Cyclone separator Aircraft ACKL 0235B, article no. 2053014

  • For highly efficient separation of large amounts of condensate from compressed air and vacuum systems. Installation between compressor and compressed air receiver.
  • Filter housing made of aluminium and anodised on the inside.
  • Separation of condensate (water, oil) and dirt particles by centrifugal acceleration of the compressed air.

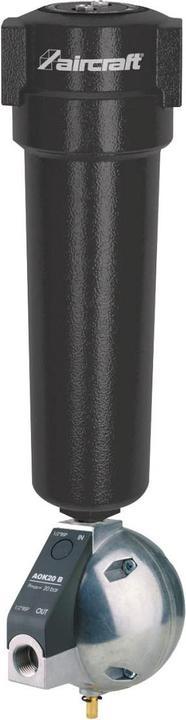

  • Condensate is separated from the water separator via the standard condensate drain with float valve.
  • Electronic condensate drain can be retrofitted.

Volume flow: 235 m³/h (3877 l/min) measured at operating pressure of 7 bar. Max. operating pressure: 16 bar. Air connection: 3/4". Operating temperature min.: 1.5 °C, max. operating temperature: 65 °C. Width/depth (product) approx.: 88 mm, height (product) approx.: 337 mm.

Key specifications

Working pressure
16 bar

General information

Item number
37513796
Manufacturer
Aircraft
Category
Air tool accessories
Manufacturer No.
2053014
Release date
11.8.2023

Material

Material group
Metal
Material
Aluminium

Pneumatic tool properties

square seat
3/4

Compressed air operation Features

Working pressure
16 bar
air demand
3877 l/min

Origin

Country of origin
Slovenia

Voluntary climate contribution

CO₂ emissions
1.58 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
Steam trap AOK 20 B

Product dimensions

Width
8.80 cm
Height
33.70 cm

30-day right of return
24 Months Warranty (Bring-in)
