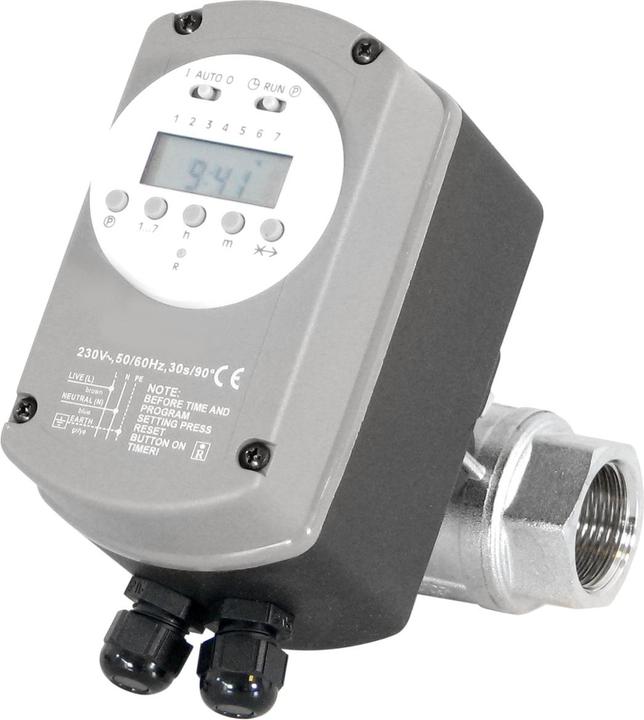

Aircraft Compressed air energy saver G1, connection : IG 1"

Compressed air energy saver Aircraft G1, connection: IG 1", article no.: 2150001

Save compressed air and energy

• Shuts off the compressed air tank from the rest of the air network at the end of the working day, retaining the compressed air content in the tank.

• Opens automatically at the set start of the shift and closes at the end of the shift.

• Several shifts can be set daily, thanks to microprocessor control and a 7-day program.

• Slow 90° ball rotation in 30 seconds for G1 or 105 seconds for G2 avoids pressure shock during opening and closing.

• With FPM seals and stainless steel ball.

• Brass nickel-plated valve body.

• 24-hour timer display.

• Operating temperature: 0 °C to + 60 °C.

• Operating voltage: 115 V or 240 V AC/DC 50 / 60 Hz.

• Power consumption: 7 W during cycle switching.

• Max. temperature: 50 °C ambient temperature, 100 °C medium temperature.

• Pressure range: 0 to 16 bar.

• Protection class: IP 54.
