ACV Rear view camera universal 4-cornered - substructure

2Ratings
Delivered between Tue, 5.5. and Thu, 7.5.
Only 4 pieces in stock at supplier
free shipping

Product details

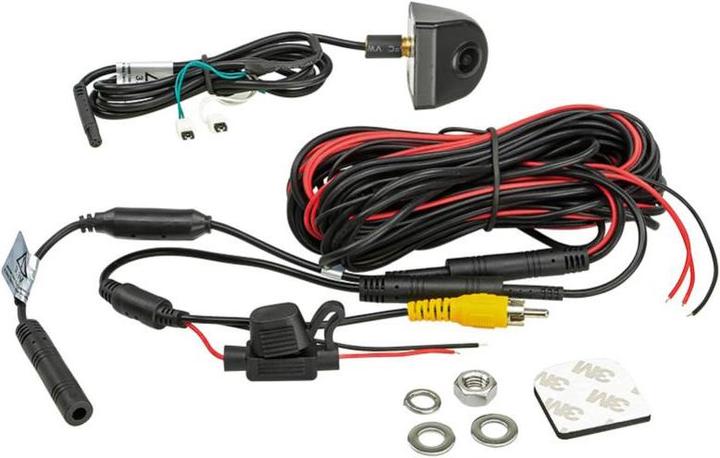

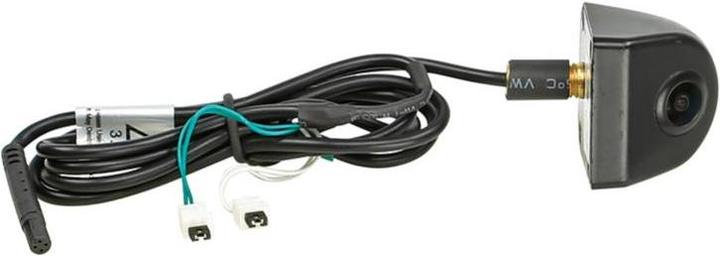

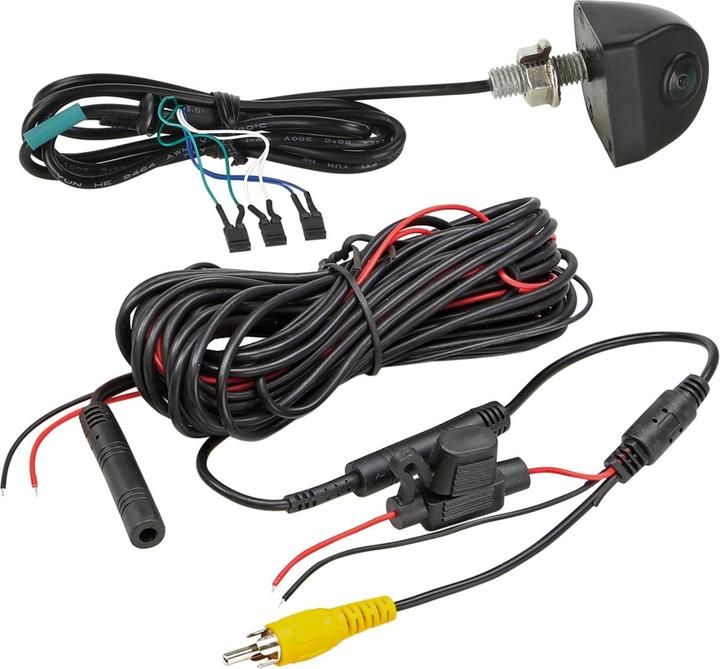

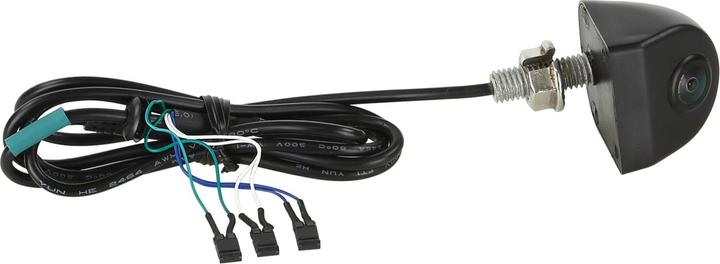

Rear view camera universal - - Design: square - Mounting type: substructure - - With orientation lines and mirror function - - Note: - - Camera operating voltage: +3V - Connection without voltage converter damages the camera - - Camera product features: - - Structure: plastic with 8mm threaded tube (cable routing) - Color: black - Extras: Orientation lines and mirror function via jumper - Sensor type: 1/3 CMOS - Image system: NTSC color - Effective pixels: 728 x 488 - Lens: 1.9mm / F 2.0 - Lux: 0.3 - Resolution: 600 TV lines - Angle of view: 170° - Angle of view: horizontal 103° vertical 78° + 5° - Dust and water protected: IP68 - Connection: 4 pin mini plug 5.2 mm - Supply voltage: 12-24Volt DC + 10% - Current consumption: 200mA - Operating temperature range: -30°C - 75°C - Storage temperature: -40°C - 85°C - Dimensions: L / W / H - 34,5mm / 33mm / 27,57mm - - Connection cable on camera: - - 1 meter cable with 4-pin mini-plug 5,2 mm - - Cable set: - - 1 meter cable with 4-pin mini-plug incl. 2 jumpers - - 6,5 meter extension incl. 3 meter power cable for connection to reversing light - and through wiring to connection cable on terminal - 4-pin mini-jack 10 mm and plug 5,2 mm - - 0,2 meter power connection cable incl. fuse and video connection cable (RCA) - - Installation accessories: - - Rear view camera plastic wedge 5° angle for 771000-6000: 771000-6910 - - Camera connection to interfaces normally open relay electronic 2V-12V/1,5A max: 40-AD-REMOTE - Camera connection to reversing light reversing camera voltage stabilizer reversing signal: 771000-6100 - - Optional accessories: - - 771000-6305 extension 5 meters - 771000-6310 extension 10 meters - 771000-6315 extension 15 mete.

Key specifications

Transmission type
Cable
Type
Rear View
Viewing angle (H)
103°
Viewing angle (V)
78°

General information

Item number
20926671
Manufacturer
ACV
Category
Rearview cameras
Manufacturer no.
771000-6000
Release date
18.5.2022

Rear view camera features

Transmission type
Cable

Camera properties

Type
Rear View
Camera resolution
0.36 Mpx
Viewing angle (H)
103°
Viewing angle (V)
78°

Accessory properties

Accessory type
Cords

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂ emissions
39.93 kg
Climate contribution
CHF 0.95

Product dimensions

Length
34.50 mm
Width
33 mm
Height
27.57 mm
Weight
361 g

Package dimensions

Length
18.30 cm
Width
12.90 cm
Height
5.70 cm
Weight
348 g
