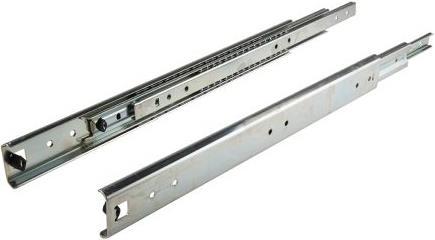

Accuride Drawer Slide,ZP,Load 180kg,L.500mm

Material: Steel
Surface finish: Zinc plated
Length closed: 500 mm
Path length: 523.5 mm
Extension: 100%
Total height: 53.1 mm
Max load: 180 kg

Accuride DZ5321 series drawer slides feature a robust design. The rugged ball bearing telescopic side mount drawer slides offer 100% extension and are made from durable zinc plated steel. These slides can accommodate up to 170 kg with 10,000 opening and closing cycles and up to 150 kg with 80,000 cycles. They include a self-cleaning ball cage that removes debris between the balls and protects the tracks. The lubricant provided is designed to last for the life of the rail, and if cleaning is necessary, a high-quality high-pressure grease can be applied.

The holding feature includes indentations that keep the drawer closed until additional pressure is applied, preventing accidental openings.

Main features and benefits:

• Smooth and quiet ball bearing operation
• Up to 170 kg load capacity
• Manufactured from durable galvanized steel
• 100% fully extendable
• Self-cleaning ball cage retaining function to keep the drawer securely closed

Fittings: These telescopic slides can be fixed with an M5 countersunk screw or a 6 mm Euro countersunk screw.

Applications: These heavy-duty drawer slides are designed for indoor use only and should be protected from excessive moisture, dirt, corrosion, and chemical fumes. Common applications include enclosures, heavy storage cabinets, industrial workstations, equipment and battery access, and maintenance and repair access.
