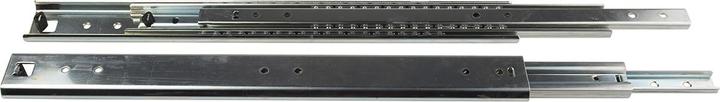

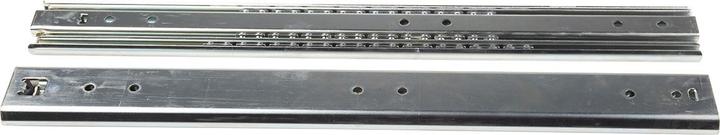

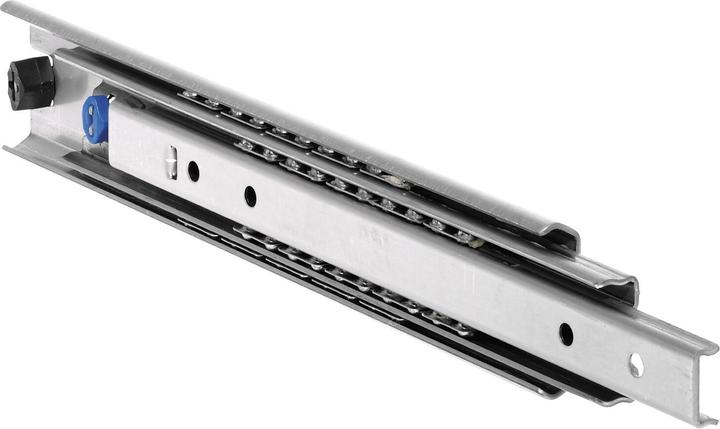

Accuride Drawer Slide,ZP,Load 160kg,L.600mm

Material: Steel
Surface finish: Zinc plated
Length closed: 600 mm
Path length: 623.5 mm
Extension: 100%
Total height: 53.1 mm
Load max: 160 kg

Accuride series DZ5321 drawer slides feature a robust design. These rugged ball bearing telescopic side mount drawer slides offer 100% extension and are made of durable galvanized steel. They can accommodate up to 170 kg with 10,000 opening and closing cycles and up to 150 kg with 80,000 cycles. The self-cleaning ball cage removes debris between the balls, protecting the tracks of the slides. The lubricant provided is designed to last for the life of the rail, and if cleaning is necessary, high-quality high-pressure grease can be applied.

These drawer slides include indentations that hold the drawer closed until additional pressure is applied, preventing unintentional opening.

Main functions and advantages include:

• Smooth and quiet ball bearing operation
• Up to 170 kg load capacity
• Manufactured from durable galvanized steel
• 100% fully extendable
• Self-cleaning ball cage
• Retaining function to keep the drawer securely closed

Fittings: These telescopic slides can be fixed with an M5 countersunk screw or a 6 mm Euro countersunk screw.

Applications: These heavy-duty drawer slides are designed for indoor use only and should be protected from excessive moisture, dirt, corrosion, and chemical fumes. Common applications include enclosures, heavy storage cabinets, industrial workstations, equipment and battery access, and maintenance and repair access.
