Accuride DA0116RC

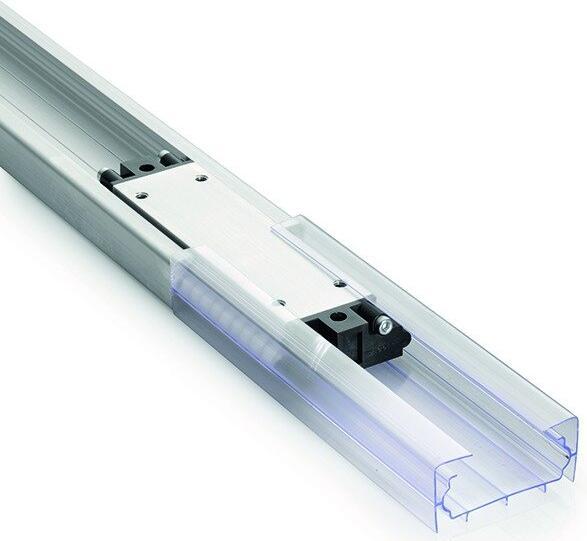

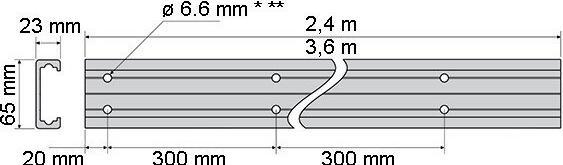

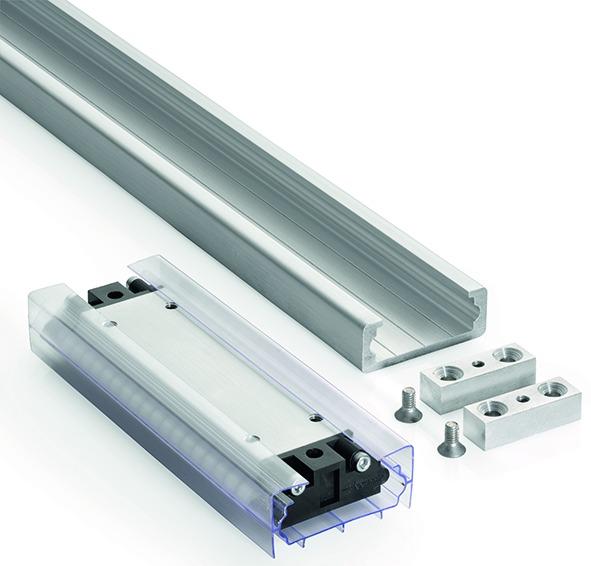

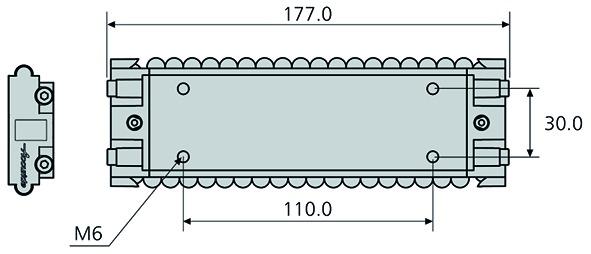

The DA0116RC linear guide with recirculating ball bearing carriage from Accuride is a heavy-duty solution for drawer runners that offers a maximum load capacity of up to 360 kg. These runner systems are made from robust aluminium rails that are known for their corrosion resistance. The recirculating ball bearing carriage, which is made of plastic, can be fitted with stainless steel or plastic balls, which must be ordered separately. Installation is carried out by screwing the material directly into the carriage using an M6 screw. The rails can be customised to the required length, whereby the customer must drill the necessary holes with a diameter of 6.6 mm. This linear guide is versatile and can be used with both soft-close damping and an end stop, making it a flexible choice for various applications. Maximum load capacity of 360 kg. Corrosion-resistant aluminium rails. Customisable rail lengths. Can be used with soft-close damping or end stop.
