ABL Wallbox

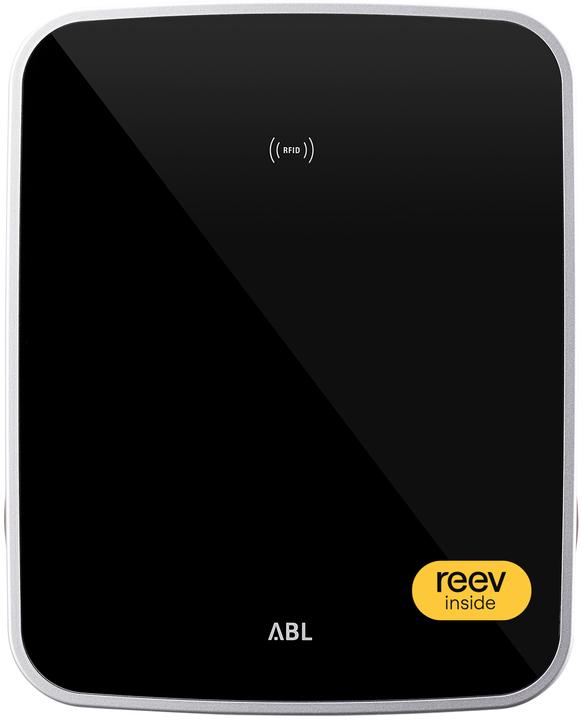

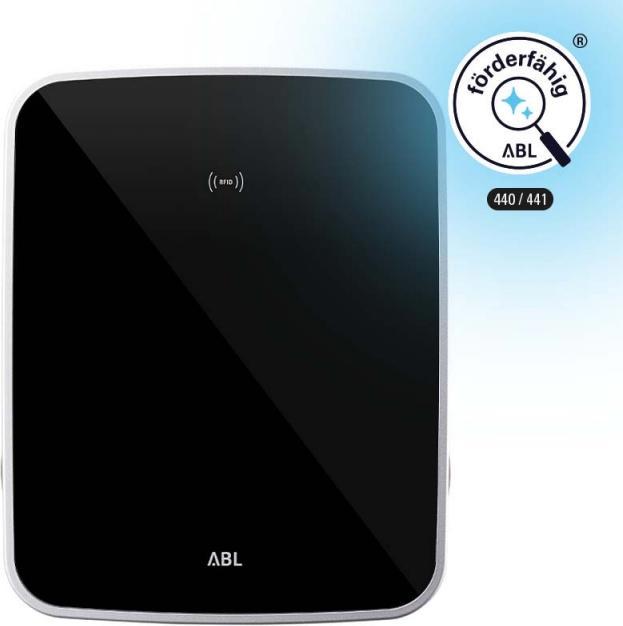

ABL E-Mobility Wallbox eMH3, 2x11kW 3W2253P

Manufacturer: ABL E-Mobility
Description: Wallbox eMH3, 2x11kW 2xT2 Socket Slave
Type: 3W2253P
Connection Type on System Side: 3-phase
Number of Charging Points: 2
Max. Power per Charging Point: 22 kW
Nominal Connection Power: 22 kW
Width: 400 mm
Height: 492 mm
Depth: 192 mm
Mounting Type: Wall-mounted
Number of Type 2 Charging Sockets: 2
With House Connection Box (HAK): no
Number of Type A RCDs: 2
With Circuit Breaker: yes
With Communication Interface: yes
With Energy Meter: yes
Access Control Function: yes
With Load Management: yes
With Display: no
Housing Material: Plastic
Protection Class (IP): IP54
Impact Resistance: IK08
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no

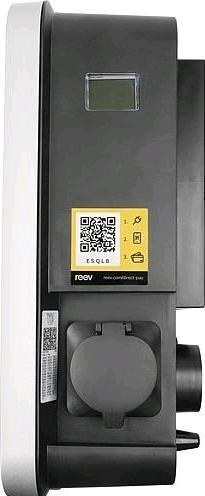

The legally compliant Wallbox eMH3 features two internal Type 2 charging sockets. It can charge two vehicles simultaneously and comes with the intelligent reev dashboard, making it the perfect solution for semi-public and public areas. In a group installation, up to 7 eMH3 Extender wallboxes can be connected to a controller. Alternatively, the Wallbox eMH3 can be configured via software for standalone operation. With standard equipment including Type A RCD and DC fault current detection, the wallbox, along with the dashboard, is always pre-installed and ready for immediate operation for installers. The Wallbox eMH3 with reev Dashboard Pro is Made in Germany and offers the highest safety standards. EAN: 4011721180878.
