Product details

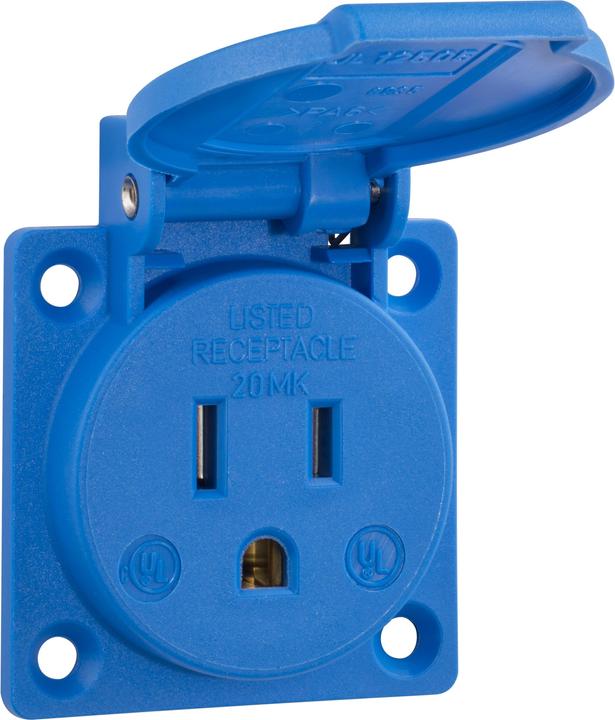

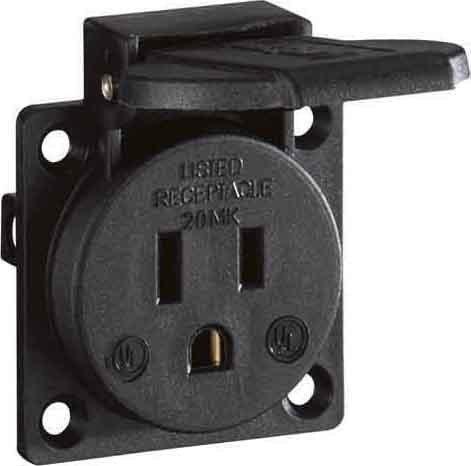

The built-in socket for the USA according to UL 498/NEMA 5-15 R and for Canada according to CSA C22.2 No. 42 is made of highly impact-resistant thermoplastic. The built-in socket is single-pole + N + ground and is equipped with a screw connection, a four-fold flange mounting, and a hinged cover. The built-in socket is resistant to heat, cold, and UV. The cable connection is made from the back, and the opening angle is approximately 106 degrees.
Number of cans | 1 x |
mounting style | Built-in |
Area of use | Inside |
Exact colour description | Blue |
Item number | 21397767 |
Manufacturer | ABL |
Category | Sockets |
Manufacturer no. | UL12505 |
Release date | 4.7.2022 |
External links |
Colour | Blue |
Exact colour description | Blue |
Material group | Plastic |
Material | Polyvinyl chloride (PVC) |
Socket type | Built-in socket |
Number of cans | 1 x |
Protection type (IP code) | IP44 |
Nominal current | 15 Ah |
Nominal voltage | 125 V |
Area of use | Inside |
mounting style | Built-in |
connector type | Screw terminals |
Additional properties | Contact protection |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Radio frequency | 60 Hz |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Stack depth | 2.20 cm |
Specifications may include unverified machine translations.
