ABB ZLBM00-100-3P-M8

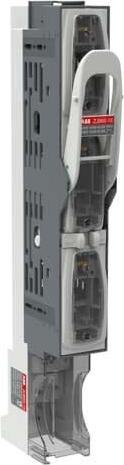

ABB Stotz S&J Load Break Switch 3-pole ZLBM00-100-3P-M8

Manufacturer: ABB Stotz S&J
Designation: Load Break Switch 3-pole switchable 3xM8 bolt
Type: ZLBM00-100-3P-M8
Design as main switch: no
Design as safety switch: no
Max. rated operating voltage Ue for AC: 800 V
Rated continuous current Iu: 160 A
Conditional rated short-circuit current Iq: 120 kA
Suitable for fuse inserts: NH00
Number of poles: 3
With fuse monitoring: no
Connection type main circuit: bolt connection
Cable entry: bottom
Equipped with connectors: no
Suitable for floor mounting: no
Suitable for front mounting: no
Suitable for busbar installation: yes
Design of the actuating element: other
Position of the actuating element: front
Motor drive optional: no
Motor drive integrated: no
Design as emergency stop device: no
Protection class (IP), front side: IP30

The InLine II ZLBM / ZHBM device generation offers you optimal stability and maximum safety in the power distribution network. They switch rated currents from 160 A to 630 A and, with the use of double handles, even up to 1250 A. They ensure the highest personal protection during the operation and maintenance of your switchgear. ABB offers the series in 1- and 3-pole variants, which have been tested according to EN / IEC 60947-3. Installation is now more space-saving and flexible than ever, thanks to horizontal and vertical mounting options. We also ensure easy and safe installation of current transformers as well as replacement of NH fuse inserts. The series is suitable for phase bars with a distance of 185 mm.
