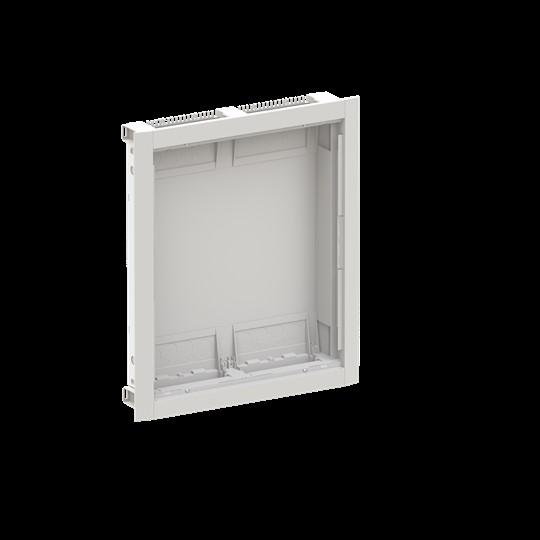

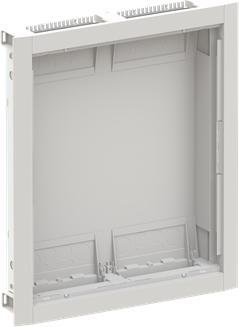

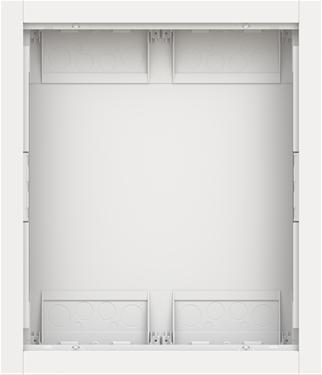

ABB STRI UP small distributor

Striebel & John Small Distribution Board UP CU24B

Manufacturer: Striebel & John
Designation: Small Distribution Board UP
Type: CU24B
Mounting Type: Flush-mounted
Number of Rows: 4
Width in Division Units: 24
Type of Cover: Optional
Cover Design: Closed
Transparent Cover/Door: No
Material of Housing: Steel
Height: 714 mm
Width: 615 mm
Depth: 125 mm
Installation Depth: 110 mm
Installation Height: 692 mm
Installation Width: 557 mm
Internal Depth: 76 mm
Ground Terminal Block: No
Neutral Terminal Block: No
DIN Rail: No
With Mounting Plate: No
Mounting Option: No
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP30
With Lock: No
Signal-Passing Door: No

The small distribution boards of the ComfortLine Compact series are designed for flush and hollow wall mounting. They impress with many new and unique technical features. The housings are delivered without internal fittings, frame, and door. Thanks to the QMS snap-in technology, the setup with distribution fields and combination sets can be customized according to customer requirements. The discreet design of the frame allows for a wall projection of only 15 mm, and the integrated plaster adjustment adapts the small distribution board to any environment. With a shallow installation depth of 110 mm, the small distribution boards can be easily mounted in hollow walls with simple cladding. A special hollow wall set significantly simplifies and speeds up the installation in hollow walls, turning every small distribution board into a hollow wall distributor. The housings feature pre-formed entries for cable routing at the top, bottom, sides, and back. The standard removable cable entry slider greatly simplifies and accelerates the wiring process.
