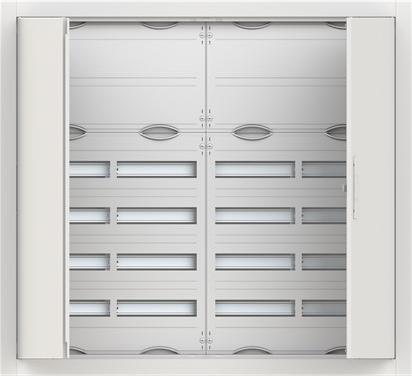

ABB STRI UP small distributor

Striebel&John Small Distribution Board UP CU46K

Manufacturer: Striebel&John
Designation: Small Distribution Board UP
Type: CU46K
Mounting Type: Flush-mounted
Number of Rows: 6
Width in Division Units: 48
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: No
Material of Housing: Steel
Height: 1014 mm
Width: 1115 mm
Depth: 125 mm
Installation Depth: 110 mm
Installation Height: 992 mm
Installation Width: 1057 mm
Internal Depth: 76 mm
Ground Terminal Block: No
Neutral Terminal Block: No
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: No
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP30
With Lock: Yes
Type of Locking: Other
Signal-Passing Door: No

The small distribution boards of the ComfortLine Compact series are designed for flush and hollow wall installation. They impress with many new and unique technical features. A row spacing of 125 mm, combined with a separate terminal space for terminal blocks, allows for easy and efficient installation of modular devices. The QMS snap-in technology enables the assembly with distribution fields and combo sets to be customized according to customer requirements. The housings are delivered with a frame and door. The discreet design of the frame allows for a wall projection of only 15 mm, and the integrated plaster adjustment adapts the small distribution board to any environment. With a shallow installation depth of 110 mm, the small distribution boards can be easily mounted in hollow walls with simple cladding. A special hollow wall set significantly simplifies and speeds up the installation in hollow walls, turning every small distribution board into a hollow wall distributor. The housings feature pre-formed entries for cable routing at the top, bottom, sides, and back. The standard removable cable entry slider significantly simplifies and speeds up the wiring process.
