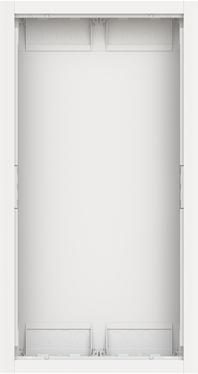

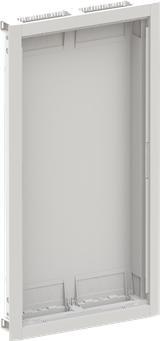

ABB STRI UP small distributor

Striebel&John Compact Surface-Mounted Distribution Board CU27B

Manufacturer: Striebel&John
Designation: Compact Distribution Board
Type: CU27B
Mounting Type: Surface-mounted
Number of Rows: 7
Width in Division Units: 24
Type of Cover: Optional
Cover Design: Closed
Transparent Cover/Door: No
Material of the Housing: Steel
Height: 1164 mm
Width: 615 mm
Depth: 125 mm
Installation Depth: 110 mm
Installation Height: 1142 mm
Installation Width: 557 mm
Internal Depth: 76 mm
Grounding Terminal Block: No
Neutral Terminal Block: No
DIN Rail: No
With Mounting Plate: No
Mounting Option: No
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP30
With Lock: No
Signal-Passing Door: No

The compact distribution boards of the ComfortLine series are designed for flush and hollow wall mounting. They impress with many new and unique technical features. The housings are delivered without internal fittings, frame, and door. Thanks to the QMS snap technology, the installation can be customized with distribution fields and combo sets according to customer requirements. The discreet design of the frame allows for a wall projection of only 15 mm, and the integrated plaster adjustment adapts the compact distribution board to any environment. With a shallow installation depth of 110 mm, the compact distribution boards can be easily mounted in hollow walls with simple paneling. A special hollow wall set significantly simplifies and speeds up the installation in hollow walls, turning every compact distribution board into a hollow wall distributor. The housings feature pre-formed entries for cable routing at the top, bottom, sides, and back. The standard removable cable entry slider significantly simplifies and accelerates the wiring process.
