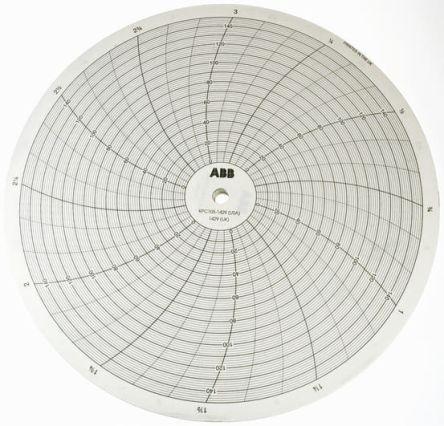

ABB Circular chart,0-100 degrees,12 hours

Accessories type: Paper for rotary recorder
Suitable for use with: ABB rotary recorder

Commander 1900 circular chart recorder. The C1900 series is a fully programmable circular chart recorder for up to four process signals. The simple operation of the C1900 and its rugged construction make it ideal for various industrial environments. Excellent standard features are complemented by a powerful range of options to flexibly meet the needs of your applications.

• 1 to 4-pin recording
• Complete application flexibility
• NEMA 4X/IP66 rinse-proof design
• Analog, relay, digital inputs and transformer power
• 6-digit multi-display screens for continuous display of all signal values
• Continuous display of all signal values; 0.1% measurement accuracy
• Accurate process information
• High immunity
• Robust, reliable operation
• RS485 serial Modbus communication
• Open system compatibility
• Integrated summator and mathematical functions
• Fully integrated solutions
• Write speed: 1 to 167 hours or 7 to 32 days per revolution
• Sensor supply: 24 V dc
• Diagram size: 10 inches or 105 mm
• Isolated universal inputs with power supply for transmitters
• Analog inputs: mV, V, mA, Ω, Pt100
• Thermocouple input: B, E, J, K, L, N, R, S, T
• Alarm relay (5 A @ 115/230 V ac), digital inputs and output for new transmission on all pins
• Analog new transmission: 4-20 mA
• Operating voltage: 115/230 V ac
• Dimensions: 382 x 386 x 134 mm

Information about the model:

• Recorder pens: 1 to 4 (red or green) depending on model
• Diagram type: KPC105, Kent diagrams type PX and PXR
• Mounted optional modules: No
• Software options: No
• Power supply: 230 V ac
• Configuration: Standard.
