Stramatel H-TOP scoreboard

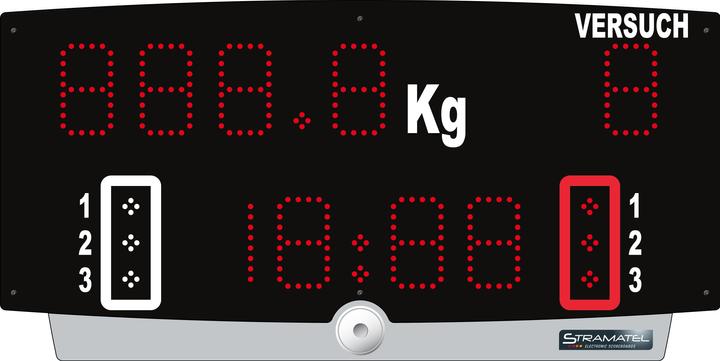

Stramatel Display Board H-TOP: Portable with foldable control panel. The Stramatel Display Board H-TOP is used in weightlifting. It displays the weight to be lifted or snatched, the number of attempts, the validity of the attempt, and a timer. The sports display can be easily controlled via the foldable control panel. Additionally, there are three individual control units for referees to input their scores. Important: In addition to the competition displays available in our shop, further models are available upon request.

Control Panel:

• 1 foldable control panel: Dimensions: 34 x 17.5 x 6 cm, with backlit LCD display, 2 lines, 20 characters of 9 mm
• 3 individual referee control units
• USB connection: For program updates in case of rule changes
• Program: According to IWF rules
• Sound signal: Automatic horn signal on the jury control panel
• Multilingual program

Further details for the H-TOP display board with mains operation:

• Power supply: Input: 100-240 V, 47-63 Hz, 0.4 A; Output: 13.6 VDC, 0.75 A
• Front: Polycarbonate, matte black, anti-glare
• Integrated buzzer: Acoustic signal generator 86 dB at 1 m

Further details for the H-TOP display board with battery operation:

• Power supply: Integrated lead batteries 2 x 6 V, 4.5 Ah, runtime 20 hrs; Input: 100-240 V, 47-63 Hz, 0.4 A; Output: 13.6 VDC, 0.75 A
• Front: Polycarbonate, matte black, anti-glare
• Integrated buzzer: Acoustic signal generator 86 dB at 1 m

Important note: If you order two or more display boards, please indicate whether the display boards should be operated together or separately.

Execution: Mobile unit
• Visibility: up to 35 m
• Power source: Battery operation
• Application area: Indoor
• Number of digits: 9 digits
• Color: Black
• Material: Polycarbonate
• Viewing angle: >160°
• Delivery includes: Battery charger, user manual, 1 display, 3 individual referee control panels, 3 x 10 m DIN cables
• Delivery condition: Ready for use
• Weight: 4 kg
• Dimensions: 73 x 37 x 11 cm.
