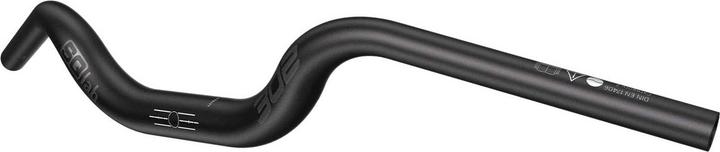

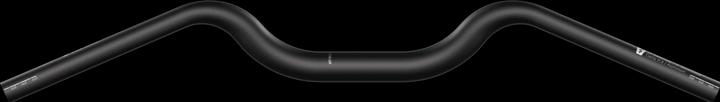

Sqlab Handlebar 302 3.0 Alu 31.8 - 35mm med rise

The 302 handlebar is designed for trekking bikes. The handlebar height (Rise) ensures a more upright seating position, while the downward curved shape (Downsweep) provides relaxation for the neck and shoulders. Its above-average width of 700 mm guarantees safety and stability but can be shortened to 640 mm at any time. A 24° Backsweep allows for a straight transition from the forearm to the hand, reducing numbness or tingling in the fingers. Combined with a 15° Downsweep, it creates an ergonomic and relaxed posture on the trekking bike.

Field of application: Trekking
Material: Aluminum 7050
Clamp diameter: 31.8 mm
Width: 700 mm (can be shortened to 640 mm)
Rise: 35 mm
Backsweep: 24°
Upsweep: -
Downsweep: 15°
Weight: 701 g
Clamp width for stem: min. 40 / max. 58 mm
Max. torque: 8 Nm
Max. permissible system weight: 180 kg
E-bike ready: yes

Safety and Quality

The quality and durability provide the highest level of safety, as SQlab has manufactured all comfort handlebars according to MTB standards and passed the most demanding testing protocol of the Zedler Institute for downhill handlebars.

Handlebar Ergonomics

With the Rise, both Backsweep and Downsweep increase. This allows for the optimal ergonomic wrist position and maximum relaxation for the neck and shoulders when a more upright seating position is desired.

Rise: The handlebar height allows for individual adjustment of the seating position.

Backsweep: Ensures a straight transition from the forearm to the hand, reducing numbness or tingling in the fingers.

Downsweep: Promotes a natural position of the elbows, relaxing the neck and shoulder muscles.
