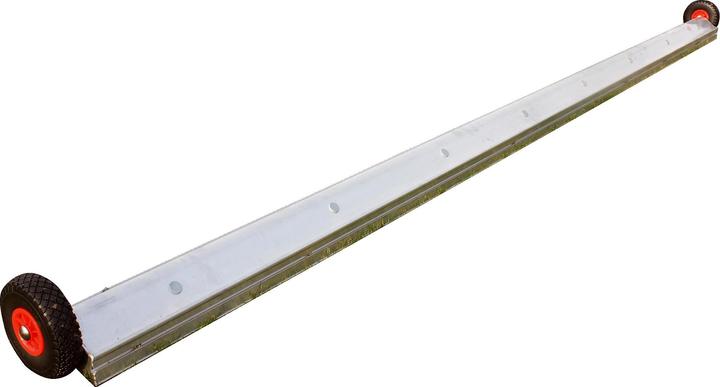

Sport-Thieme Safety anti-tilt device for large field goals

The clever tipping safety device combines safety and mobility. The gate security for mobile large field gates achieves a significant effect with minimal effort. This quality product, made in Germany, consists of a specially developed, fillable aluminum profile with sturdy transport wheels. The weight tube is securely bolted to the ground frame and then filled with dry quartz sand. The height of the required additional weight depends on the depth of the ground frame. To achieve the prescribed counterweight with the same size of the tipping safety device, the tipping safety devices for training goals with a 1.5-meter ground frame depth are factory-equipped with additional steel inserts.

Important: The tipping safety device for retrofitting is 5 meters long!

Necessary counterweights for large field training goals:

• Goal depth 1.5 m: At least 170 kg empty weight tipping safety device 69.1 kg + 110 kg sand
• Goal depth 2.0 m: At least 100 kg empty weight tipping safety device 31.1 kg + 120 kg sand

Available versions of the tipping safety device: Please select the correct version for your goal based on the depth and profile of the ground frame. The different versions are precisely tailored to the respective goal type at the factory and differ in several details.

Tipping safety devices for training goals with a lower goal depth of 1.5 m:

• For square profile ground frame H 80 x W 80 mm
• For oval profile ground frame H 120 x W 100 mm

Tipping safety devices for training goals with a lower goal depth of 2.0 m:

• For square profile ground frame H 80 x W 80 mm
• For oval profile ground frame H 120 x W 100 mm.
