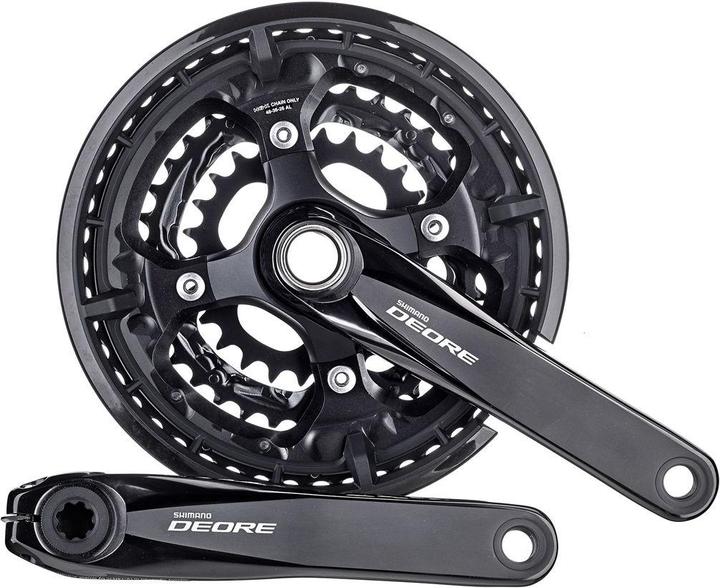

Shimano Deore Trekking FC-T6010

170 mm
2Ratings
BrandMore from Shimano
Delivered between Tue, 20.5. and Thu, 22.5.
More than 10 items in stock at supplier

Product details

The Shimano Deore Trekking FC-T6010 3-speed crankset with trekking-specific components offers top-notch performance for demanding riders. Shimano has focused on a wide range with the Hollowtech II crank featuring a chain guard.

The development of the Hollowtech II crankset was aimed at achieving optimal and efficient power transfer. The Hollowtech technology allows for extremely lightweight, hollow crank arms, manufactured using Shimano's exclusive forging technology to ensure maximum stiffness. Additionally, in the Hollowtech II set, the right crank is firmly connected to the axle, achieving an optimal balance between maximum stiffness and minimal weight.

• Purpose: Trekking
• Details:

  • Compatible chain: HG-X 10-speed
  • Small chainring: Steel
  • Middle chainring: Steel
  • Large chainring: Aluminum
  • Number of chainrings: 3 chainrings
  • Gear ratio: 48/36/26 teeth
  • Bolt circle diameter: 104/64 mm
  • Bolt circle type: Standard
  • Chainline: 50 mm
  • Crank arm length: 170 mm
  • Rear derailleur compatibility: 10-speed
  • Design: 4-arm
  • Axle interface: 24 mm

Bearing cups (optional): SM-BB52 BSA.

Key specifications

Number of chainrings
3 x
Item number
6869772

General information

Manufacturer
Shimano
Category
Bike cranks
Manufacturer no.
63.69368
Release date
14.6.2022
Sales rank in Category Bike cranks
23 of 1501

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Aluminium, Steel

Crank properties

Bike area of use
Trekking bikes
Number of chainrings
3 x
Number of teeth
26 + 36 + 48
Model year
2017
Chainring mount
4-arm
Crank model
Deore Trekking FC-T6010
Additional properties
Trouser protector

Compatibility

Cassette compatibility
10-speed
Type of bottom bracket
Hollowtech II
Bolt circle
64 mm
Bolt circle type
Standard
Chainline
50 mm
Box width
68 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
170 mm
Weight
1760 g

Package dimensions

Length
28 cm
Width
21.30 cm
Height
19.70 cm
Weight
1.78 kg
