Product details

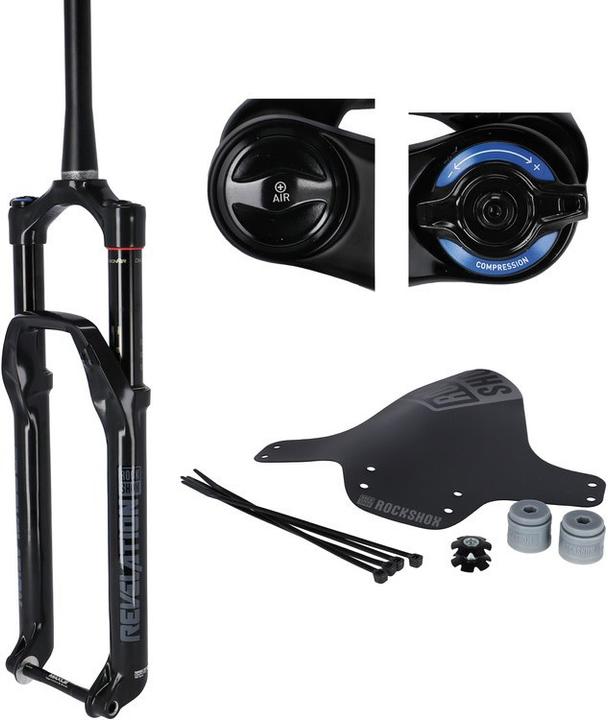

The RockShox Revelation RC Disc is a high-quality bike fork specifically designed for trail and enduro use. With a travel of 160 mm, it offers excellent damping and control on challenging terrain. The fork is equipped with an air suspension system that allows for individual adjustment of air pressure via a Schrader valve. The Motion Control RC damping provides precise control over the suspension characteristics, while the external adjustment options for rebound and the two settings for low-speed damping enable optimal adaptation to various riding conditions. The Revelation RC Disc features a robust aluminium steerer tube and magnesium stanchions, ensuring both stability and a lightweight design. This fork is suitable for 27.5-inch wheels and supports disc brakes with a diameter of up to 220 mm, making it a versatile choice for mountain bike enthusiasts.
- 160 mm travel for optimal damping and control
- Air suspension with individual adjustment via Schrader valve
- Motion Control RC damping for precise control
- Robust aluminium steerer tube and magnesium stanchions
- Compatible with disc brakes up to 220 mm in diameter.
Suspension travel suspension fork | 160 mm |
Suspension system | Air |
Fork shank diameter | 1.5" |
Wheel diameter | 27.50" |
Item number | 21246213 |
Colour | Black |
Exact colour description | Gloss Black |
Material steerer | Aluminium |
Material lower | Magnesium |
Bike area of use | Mountain bike |
Suspension travel suspension fork | 160 mm |
Suspension system | Air |
offset | 460 mm |
Bike fork functions | Lockable via handlebar |
Fork shank diameter | 1.5" |
Wheel diameter | 27.50" |
Brake mounts | PM 6" |
Diameter axle | 38.10 mm |
Axle length | 265 mm |
Max. disc diameter | 220 mm |
