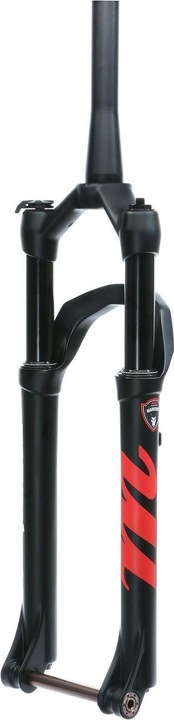

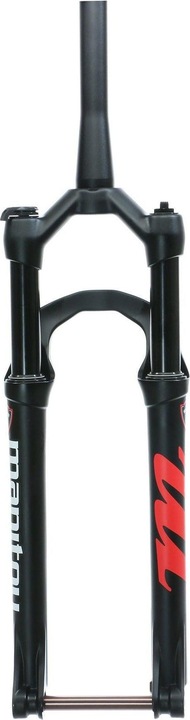

Manitou Markhor

Handles terrain like a goat. Just because you're on a budget doesn't mean you can't ride a suspension fork that gives you excellent, smooth control. The Markhor features our KwikToggle damper with easy on/off lockout. With travel between 100mm and 120mm, the Markhor fork smooths out any line the trail puts in front of you.

Key Features

• 100mm or 120mm travel
• TS air spring
• Kwik toggle compression damping
• TPC rebound damping
• Available in 26", 27.5", and 29" sizes

Specifications

• Wheel size: 26", 27.5", 27.5+/29"
• Weight: 1843g (26"), 1826/1878g (27.5"), 1870/1910g (27.5+/29")
• Offset: 38mm (26"), 41QR/44mm TA (27.5"), 48QR/51 TA (27.5+/29")
• Axle to crown: 455-475mm (26"), 474-514mm (27.5"), 490-530mm (27.5+/29")
• Travel: 80-100mm (26"), 80-120mm internally adjustable (27", 27.5+/29")
• Spring: TS air
• Compression damping: Kwik toggle
• Rebound damping: Adjustable TPC cartridge
• Adjustments: Air pressure, rebound, lock-out
• Steerer: 1-1/8" straight (26"), 1-1/8" straight or 1.5" tapered (27.5", 27.5+/29")
• Crown: Shot peen forged aluminum
• Leg diameter: 30mm
• Leg material: 6000-series straight wall aluminum
• Brake post mount: 160mm (203mm max)
• Axle: 9mm QR (26"), 9mm QR or 15mm x 110mm hexlock (27.5", 27.5+/29")
• Max tire size: 69mm (26"), 71mm QR / 80mm TA (27.5"), 69mm QR / 80mm TA (27.5+/29")
• E-Pac: 26" - No, 27.5" tapered w/ TA - Yes, 27.5+/29" tapered w/ TA - Yes.
