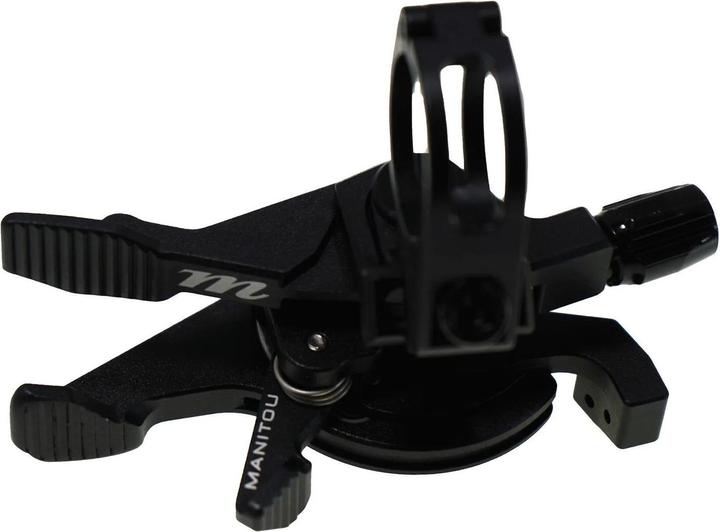

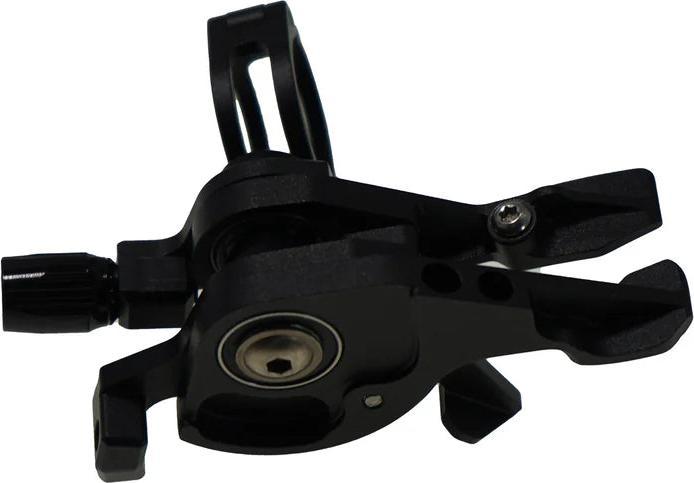

Manitou Ace/Deuce Lockout

Manitou Engineers worked diligently to produce a premium level remote system to ensure riders have complete control of the suspension. The ACE and DEUCE combo is a Manitou-made underbar remote lockout that controls the fork, shock, and dropper posts. The Ace lever controls the dropper post while the Deuce lever controls both the fork and shock. The two levers are stackable and can be configured to suit each individual rider's preferences. The Ace can be positioned above or below the Deuce, and either can function as a stand-alone lever. To minimize weight, the lever uses 3mm housing and 0.9mm cable, but it is also compatible with standard 4mm housing and 1.2mm cable.

Specification:
ACE:
Usage: Underbar remote dropper post lever
Clamp: Left-hand, under handlebar (12mm lateral adjustment)

• 22.2mm handlebar clamp (standard)
• Hayes Peacemaker for Matchmaker X (with standard clamp removed)

Color: Matte black anodized
Adjustments: Cable fixing screw with barrel adjuster
Integration: Stackable with Deuce lever (conversion kit available separately)
Cable Pull: 7mm
Included AM: Manitou SL 0.9mm D head cable with lightweight 3mm housing
Weight: 42g
Other: Compatible with standard shift cable and 4mm housing

DEUCE:
Usage: Suspension lockout remote lever, thumb-actuated
Clamp: Left-hand, under handlebar (12mm lateral adjustment)

• 22.2mm handlebar clamp (standard)
• Hayes Peacemaker for Matchmaker X (with standard clamp removed)

Color: Matte black anodized
Lockout control: Fork-only, shock-only, or dual-suspension
Integration: Stackable with Ace lever (conversion kit available separately)
Configuration: 18mm pull for 3-position damper
Options: 18mm pull for 2-position damper
Included AM: Two SL cable kits with lightweight cable and housing, inline barrel adjusters
Weight: 55g
Compatibility: MILO-equipped Manitou and 18mm cable pull products
Other: Compatible with standard shift cable and 4mm housing.
