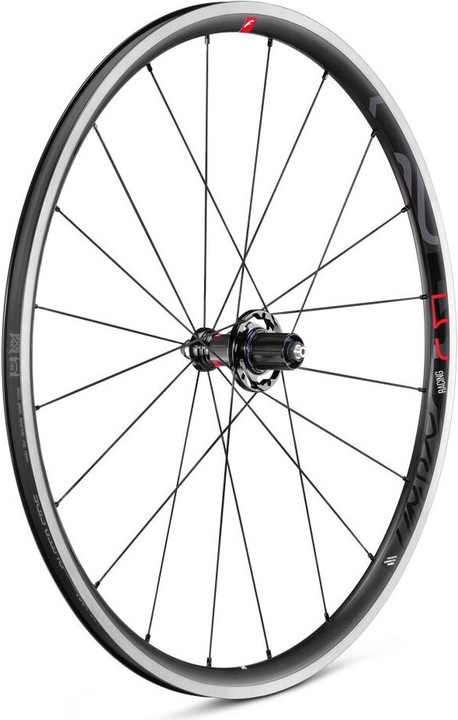

Fulcrum Racing 5

Thanks to a completely new concept, the already proven Racing 5 wheel allows for even higher performance. The very features that have made the Racing 5 LG such a popular wheel are now complemented by new elements, making this model tangible for all and ideal for racing. The asymmetrical profile of the rear rims and the design with 20 spokes provide significant performance advantages in terms of lateral and torsional stiffness, as well as increased responsiveness. This design ensures better distribution of spoke tension, making the wheel stiffer and more powerful.

• Model: Set
• Purpose: Road bike
• Axle system: HR 10x130 mm
• Axle standard: Thru axle front hub
• Features: Ball bearing
• Front axle diameter: 9 mm
• Number of spokes: 18
• Installation width: 100 mm
• Material: Aluminum hub body with aluminum flanks

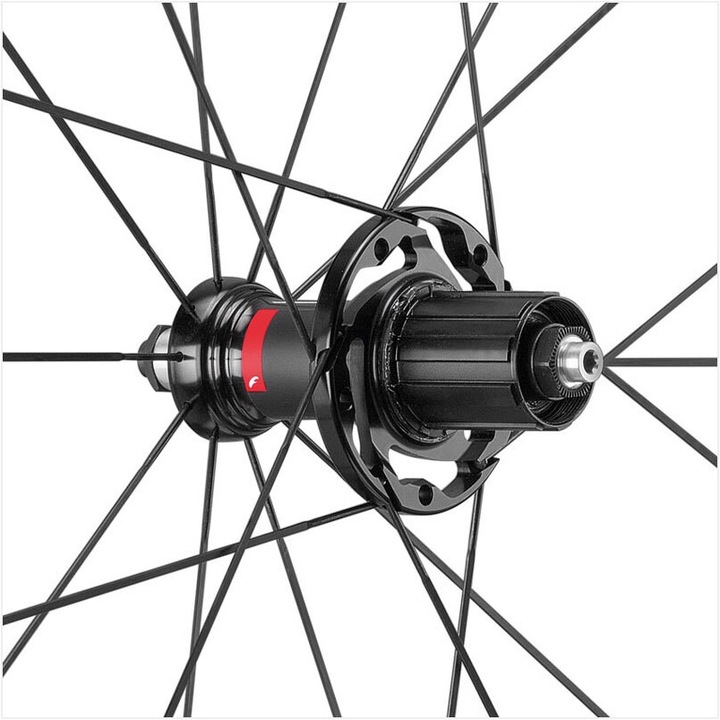

Rear hub:

• Features: Ball bearing
• Rear axle diameter: 10 mm
• Number of spokes: 20
• Material: Aluminum hub body, oversized aluminum flanks
• Installation width: 130 mm

Rims:

• Height: Front: 24.5 mm, Rear: 27.5 mm
• Tread height: Low (< 30 mm)
• Brake system: Rim brake
• Mouth width: 17 mm
• Width: 23 mm
• Tire type: Clincher
• Material: Aluminum
• Size: 28 inch
• Construction: Hollow

Scope of delivery:

• 1 Fulcrum Racing 5 LRS Road 28" HG 8-11-speed clincher black/red

Spokes:

• Lacing: VR: 9 left + 9 right, HR: 10 left + 10 right
• Material: Stainless steel, double butted
• Construction: Aero, straight pull

Wheel front:

• Designed for brake type: Rim brake

Wheel rear:

• Designed for brake type: Rim brake

Wheelset:

• Total weight: 1650 g
• Max total load: 109 kg.
