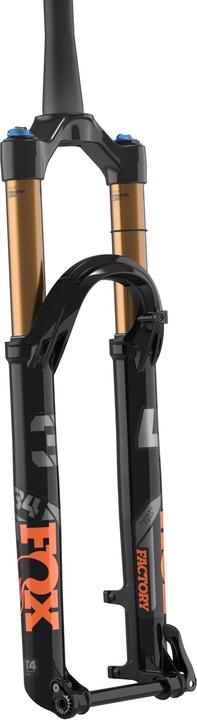

Fox 34 K Float 29" F-S 140mm FIT4 3Pos-Adj

The heavy-duty Do-it-All trail fork is smoother, lighter, more adjustable, and more powerful than ever before. When it comes to an all-round trail fork, the 34 is in a class of its own.

The bypass channel in the lower leg ensures that during the fork's compression movement, the air volume in the lower legs is increased, reducing the additional pressure spike. This helps to address the issue of not being able to achieve full travel.

The ratio of stiffness to weight is crucial for bike design. Engineers optimize every gram of material to ensure that the stiffness and strength requirements of modern enduro and gravity riding are met.

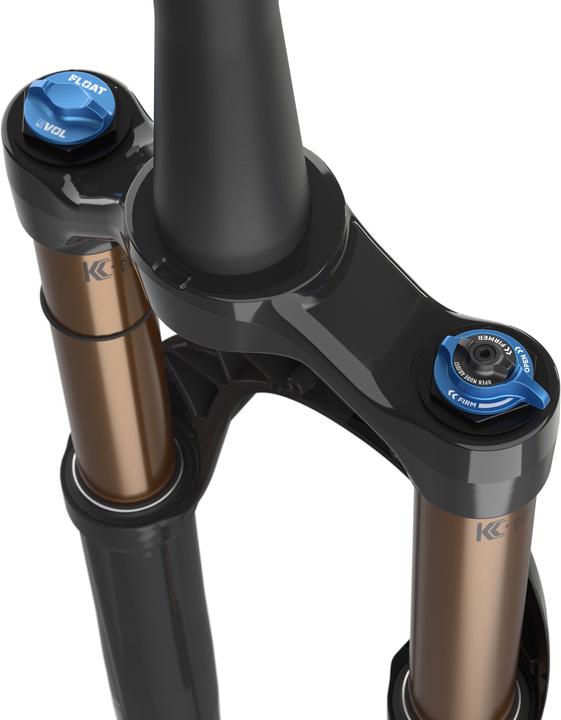

The fourth-generation FIT4 system offers three compression damping positions - open, medium, and firm - to adapt to different trail conditions.

• Function: Adjustable rebound
• Intended use: MTB
• Weight: 1738 g
• Details:

• Offset: 44 mm

Material:
• Upper tube: Aluminum
• Lower leg: Magnesium
• Steerer tube: Aluminum

Suspension fork:
• Travel: 140 mm
• Wheel size: 29 inches
• Steerer tube diameter: 1 1/8 -> 1.5 inches (tapered)
• Axle width: 110 mm
• Axle type: Thru-axle
• Axle diameter: 15 mm

Spring system:
• Type: Oil / Air

Brake mount:
• Brake type: Disc (Post Mount).
