DT Swiss Steel,3 Pawl in Ratchet, Shimano MS,36T

Ratings
Delivered between Thu, 7.8. and Fri, 8.8.
Only 1 piece in stock at supplier
free shipping

Product details

Upgrade kit for converting DT Swiss 370 hubs with 3 pawls to the Ratchet LN ratchet system. The end caps can be reused with the same freewheel.

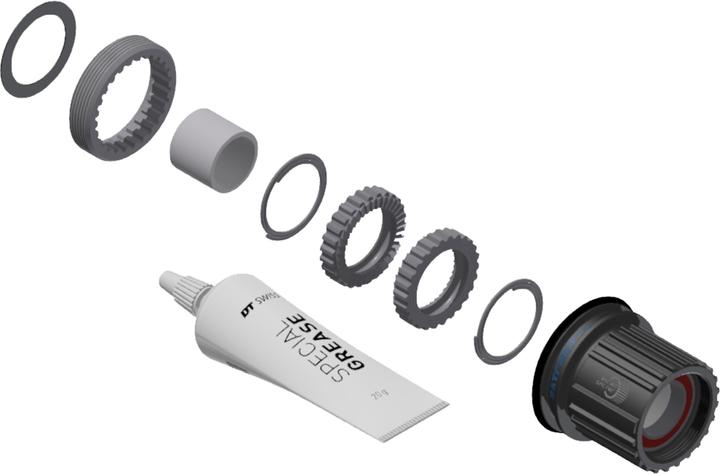

Included in delivery:

  • Ratchet LN freewheel steel micro spline
  • Two springs
  • Ratchet/ratchet plate set with 36 teeth
  • Spacer sleeve
  • Washer
  • DT Swiss special grease, ratchet plate grease 20g

Optional ratchet plates with 18, 24, or 54 teeth are available if a different engagement angle is desired.

The following tools are also required for the installation of the maintenance kit:

  • Thread ring removal tool
  • Thread ring removal tool for 3 pawls.

Key specifications

Material
Steel
Bike area of use
Mountain bike
Freewheel
Shimano Micro Spline
Weight
160 g
Axle diameter
36 mm
Item number
23882105

General information

Manufacturer
DT Swiss
Category
Hubs + Freewheels
Manufacturer no.
HXYXXX00N7686S
Release date
22.6.2022

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Steel

Wheel properties

Bike area of use
Mountain bike

Hub + freewheel Features

Hub type
Freehub body
Axis standard
Thru axle
Number of holes
36 x
Axle diameter
36 mm
Cassette compatibility
12-speed
Freewheel
Shimano Micro Spline

Origin

Country of origin
Switzerland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
DT Swiss Special Grease, Ratchet LN Freewheel Steel Micro Spline, Ratchet/tooth disc set 36 teeth, Spacer sleeve, Spring two pieces, Toothed disc grease 20g, Washer

Product dimensions

Weight
160 g
