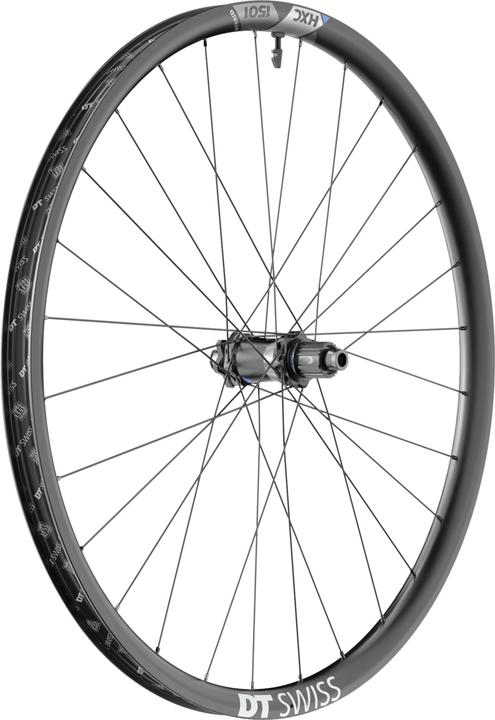

DT Swiss HXC 1501 Spline

Developed for riders seeking the ultimate performance from an eMTB wheelset. Newly equipped with a carbon rim, the HXC 1501 SPLINE ONE is the top hybrid wheel in the DT Swiss range. The carbon rim is combined with a newly designed hub shell that offers better resistance to the drive and braking forces, which are higher in modern eMTBs. With the new Ratchet EXP OS system featuring 30 teeth, the torque generated by the motor and rider is directly transferred from the pedals to the ground. This transfer is made possible by reinforced spokes, allowing for even greater accelerations than previous hybrid product lines. Every component has been carefully designed, produced, and tested to ensure a stress-free ride and enjoyment, regardless of the rider's level.

• Axle system: HR 12x148 mm
• Details: - ASTM classification: 4
• Axle standard: Thru-axle
• Intended use: MTB
• Designed for e-bikes

Rear hub
• Rear axle diameter: 12 mm
• Freehub body: Shimano Micro Spline 12-speed
• Installation width: 148 mm
• Type: 240 Hybrid Straightpull with Ratchet EXP OS system
• Features: for thru-axle

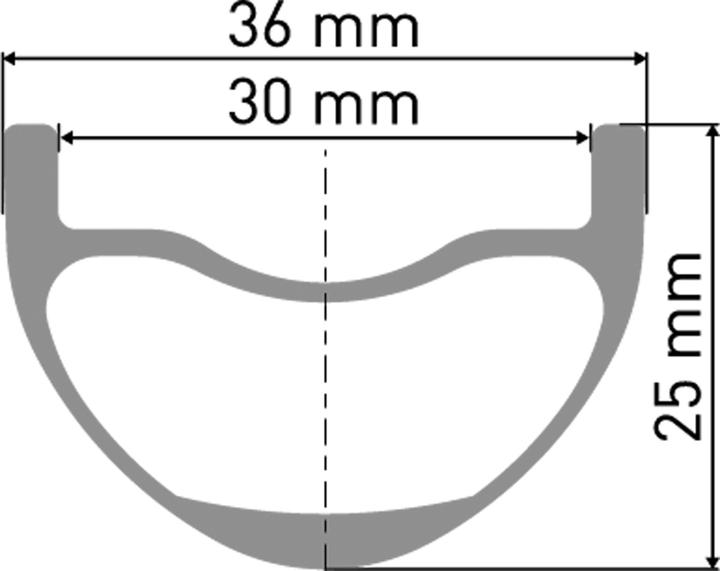

Rims
• Size (in inches): 29 inches
• Inner width: 30 mm
• Tire type: Wire tire/Clincher
• Height: 25 mm
• Tubeless compatible
• Design: Hollow chamber
• Brake system: Disc brake
• Valve hole: 6.5 mm
• Profile height: low (< 30 mm)
• Material: Carbon

Delivery contents
• Delivery contents: 1x HR DT Swiss HXC 1501 Spline 29" Disc 6-bolt 30 mm 12/148 mm including tubeless tape 32 mm, tubeless valve alu black 18-25 mm

Spokes
• Material: Aluminum
• Design: Spokes: DT Hybrid 2 / Nipples: DT ProLock Squorx ProHead Aluminum

Rear wheel
• Max. total load: 140 kg
• Designed for brake type: Disc brake 6-bolt
• Weight: 1033 g

Main information
• Version: rear.
